PCIE-SE2

Buy at Amazon
Cooperation

PCIE-SE2

Model: PCIE-SE2

Connector Interface: PCIE X1

Compatible Device: DB9 Serial Ports Devices

Compatible System: Windows XP, Vista, 7, 8.x, 10, 11 (32/64bit). Linux kernel 2.6.x, 3.x, 4.x, 5.x


PCI Express to 2X RS-232 DB9 Pin Serial Ports Expansion Card for Barcode Scanner, Card Reader, Barcode Printer etc.

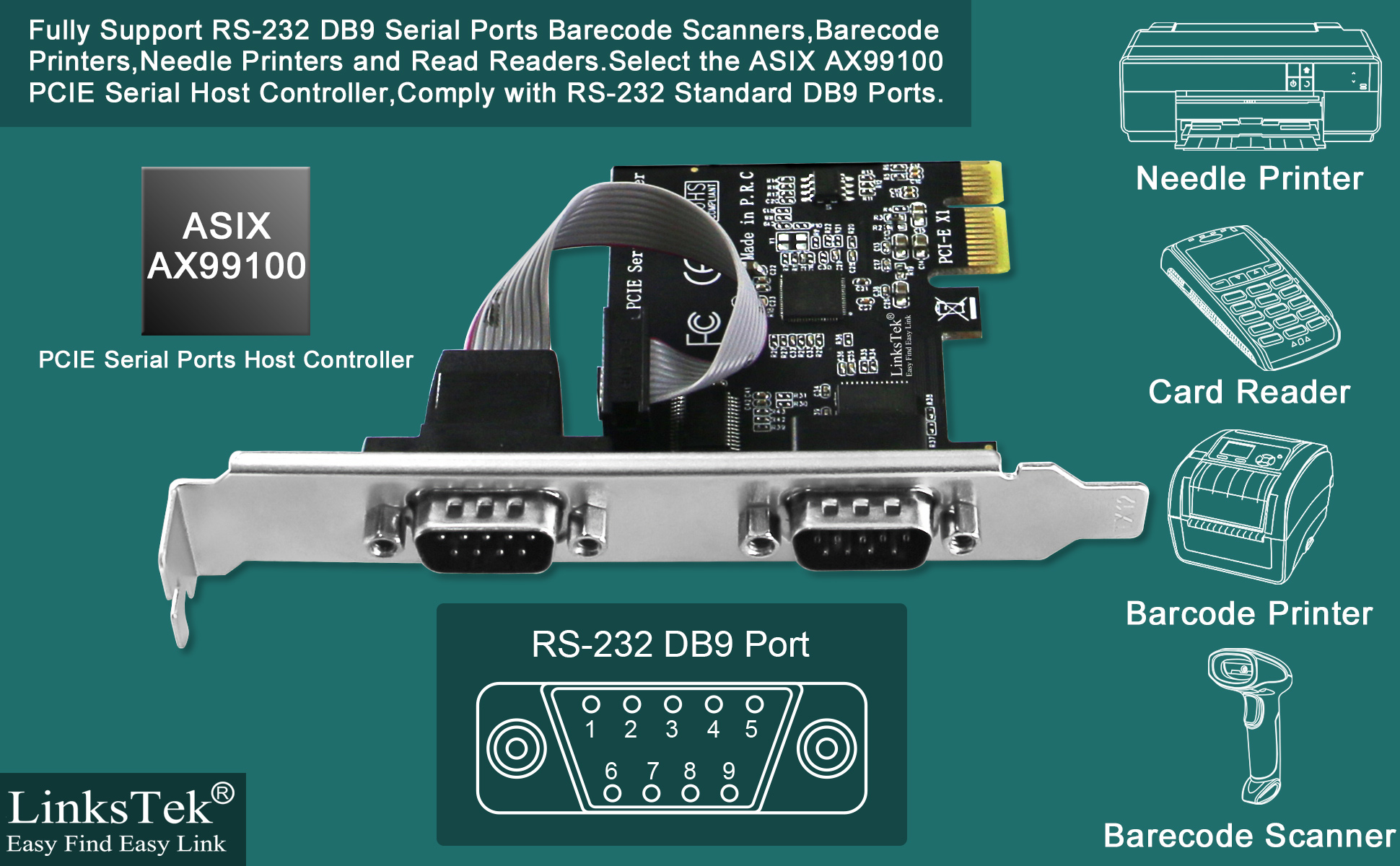

LinksTek PCIE-SE2 is a PCIE to dual ports RS232 DB9 serial port expansion card. It is based on ASIX AX99100 solution will compatible with most Windows OS and Linux systems. Allow users add dual RS232 DB9 serial ports on desktop PCs, working stations and industrial equipment by a single PCIE X1 slot. Users can full use the old devices with Serial RS232 ports such as modems, cellular phones, PDA, ISDN terminal adapters, satellite receivers, graphic tablets, bar code scanners, label printers, automated teller machines, GPS, finger print identifications, Infra-Red transceivers, packet radios, magnetic card readers, POS devices, multi-modem dial-up server digital cameras, card readers and more serial port devices.

Technical Specifications:

1. RS-232 DB9 Pin Serial Port: Fully compatible with IEEE 1284 standard DB25 pin Parallel LPT port. Will light up 2X DB25 ports devices on desktop PCs.

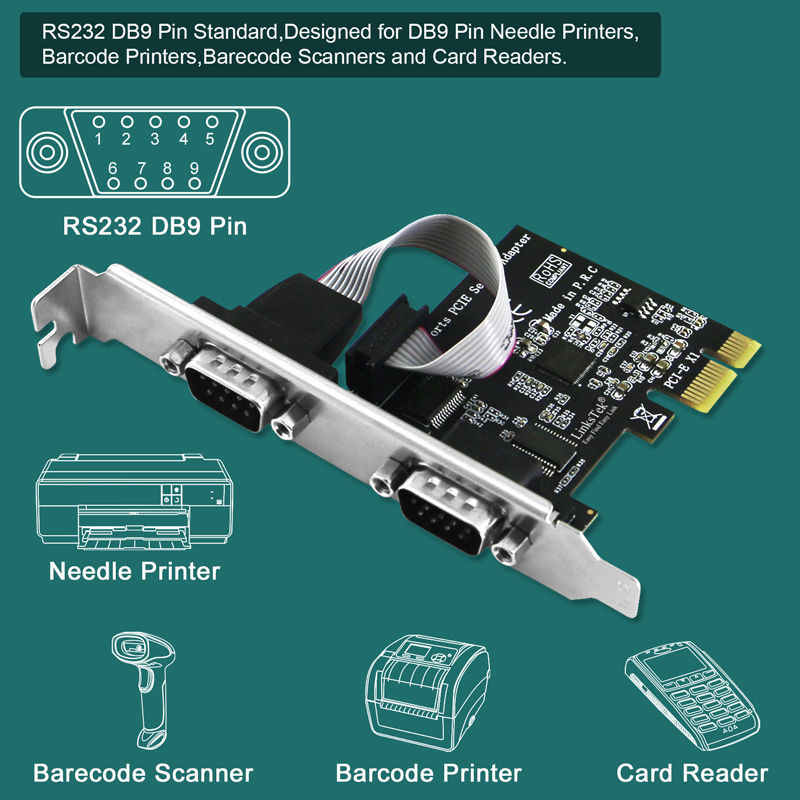

2. Multiple DB9 Serial Ports Devices: Compatible with RS-232 DB9 ports serial devices such as needle printers, barcode scanners, card readers, barcode printers, network modems, PDAs, POS devices, finger print identifications, Infra-Red transceivers and more.

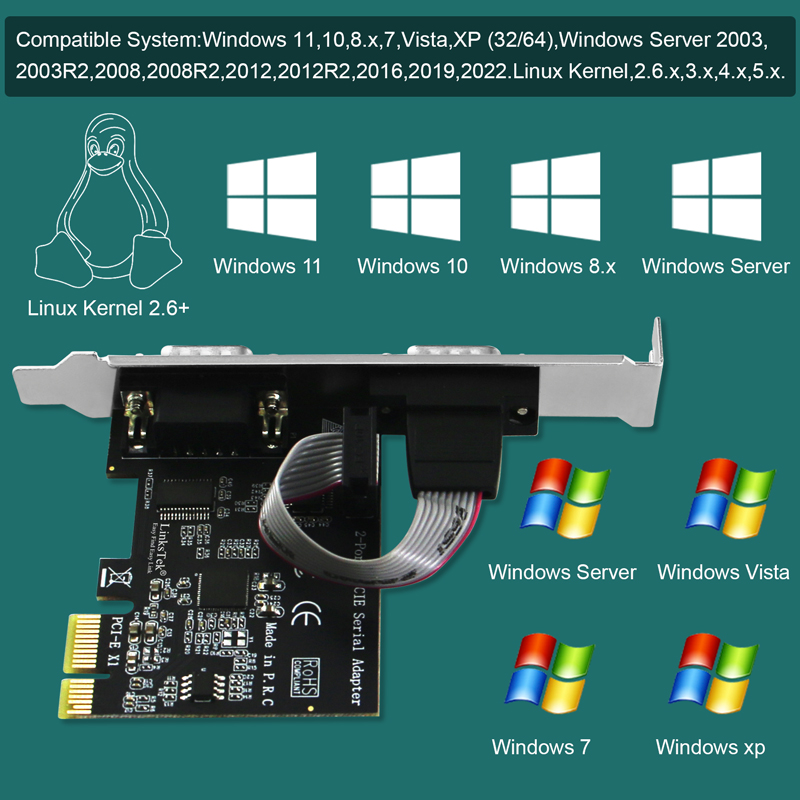

3. Windows and Linux Systems: Compatible System: Need install driver on Windows 11, 10, 8.x, 7, Vista, XP, (32/64). Need compile driver on Linux Kernel 2.6.x, 3.x, 4.x, 5.x.

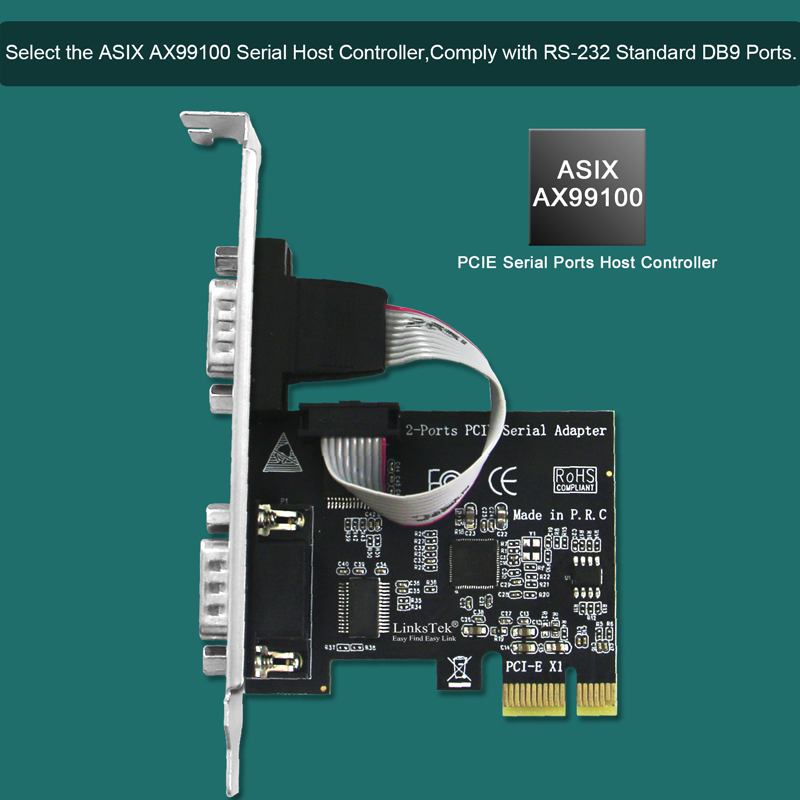

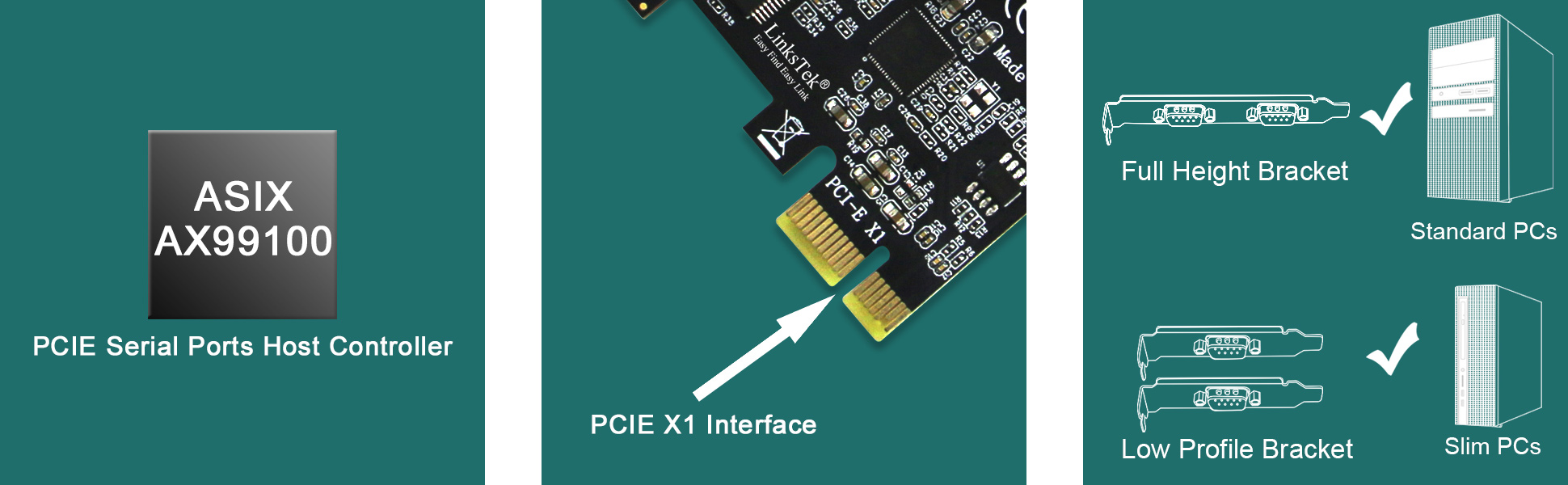

1. ASIX AX99100 Serial Port Chipset: Select the most stable PCIE to DB9 Serial Ports Host Controller ASIX AX99100, will work on most AMD, INTEL, ARM hardware platform. Will support most of Windows and Linux systems

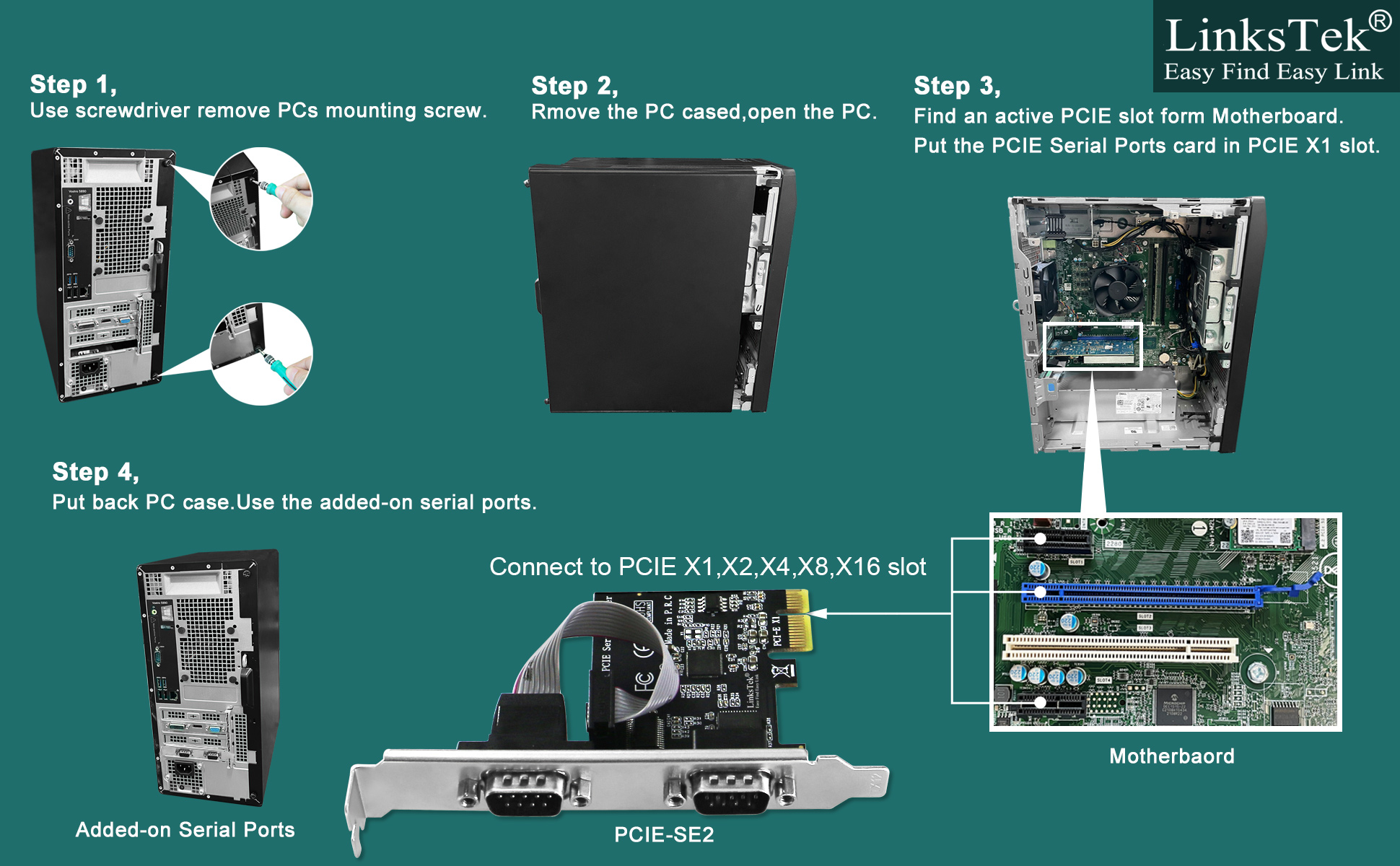

2. PCIE X1 Interface: PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. IMPORTANT NOTE: Users better make sure PC's have 1X empty PCIE slot before purchase.

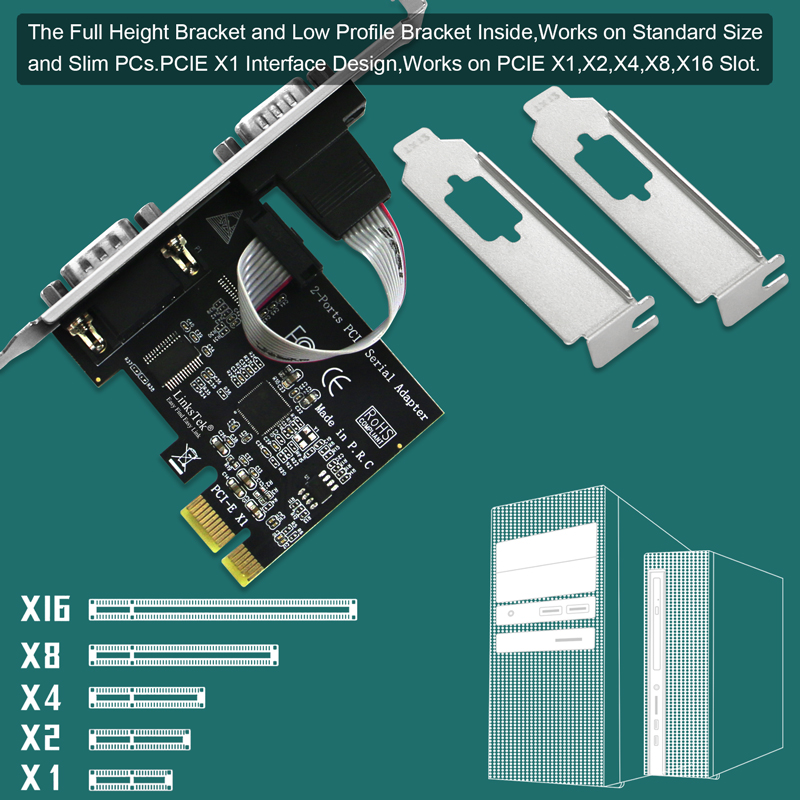

3. Slim PCs and Full Size PCs: The full height bracket mounted on the PCIE parallel card, will work on standard size PCs. The low profile bracket in the package, will work on slim PCs.

Product Description:

LinksTek PCIE-SE2 is a PCIE to dual ports RS232 DB9 serial port expansion card. It is based on ASIX AX99100 solution will compatible with most Windows OS and Linux systems. Allow users add dual RS232 DB9 serial ports on desktop PCs, working stations and industrial equipment by a single PCIE X1 slot. Users can full use the old devices with Serial RS232 ports such as modems, cellular phones, PDA, ISDN terminal adapters, satellite receivers, graphic tablets, bar code scanners, label printers, automated teller machines, GPS, finger print identifications, Infra-Red transceivers, packet radios, magnetic card readers, POS devices, multi-modem dial-up server digital cameras, card readers and more serial port devices.

IMOPRTANT NOTE:

1. Make sure users PCs have empty PCIE slot.

2. Slim PC users need change to low profile bracket by hand.

3. Please install correct driver from Mini-CD for desktop PCs.

Compatible System: Linux kernel 2.6.x, 3.x, 4.x, 5.x need to refer to compile source code in the Mini-CD. Need to install driver on Windows XP, Vista, 7, 8.x, 10, 11 (32/64bit) systems.

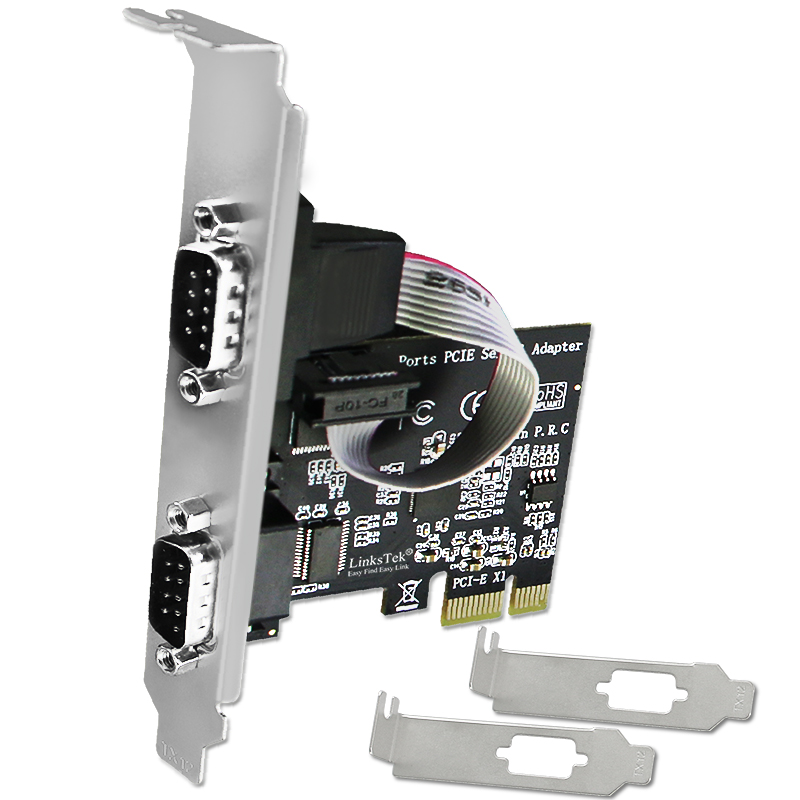

Package List: 1X PCIE-SE2 1X Mini CD 1X User Manual 1X Mount-Screw 2X Low Profile Bracket
