PCIE-PA1
PCIE-PA1
Model: PCIE-PA1
Connector Interface: PCIe x1
Major Chipset: ASIX AX99100 Chipset

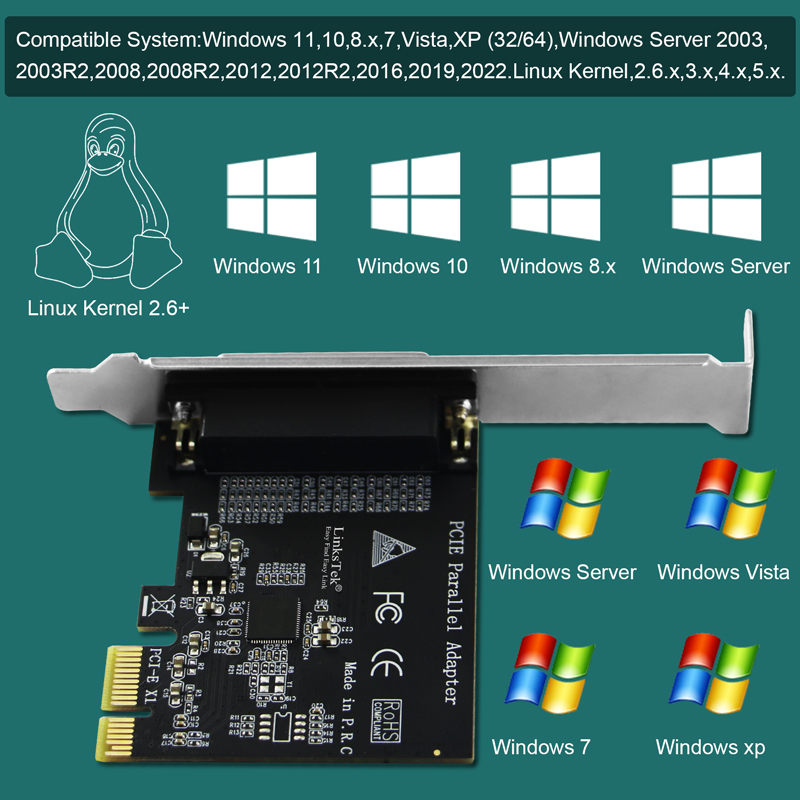

Compatible System: Windows 11, 10, 8.x, 7, Vista, XP, (32/64), Linux Kernel 2.6.x, 3.x, 4.x, 5.x.
1-Port PCIE to DB25 Parallel LPT Ports Card for Needle Type Printers and Thermal Printers
LinksTek PCIE-PA1 is a PCI Express X1 interface to 1-Ports DB25 parallel LPT port card. It is based on ASIX AX99100 PCIE to parallel host controller solution, will compatible with most of Intel, AMD and ARM hardware platform on Windows OS and Linux kernel systems. Allow users add 1-Parallel DB25/LPT port on desktop PCs, working stations or industrial device by a single PCIE slot. Fully support IEEE 1284 protocol, Supports ECP (enhanced capability port), EPP (enhanced parallel port), SPP (standard parallel port), Nibble, Byte mode will work on most of parallel port peripherals device such as printers, scanners, CD-R/RW drives, memory card readers, bar code scanners etc.
Technical Specifications:

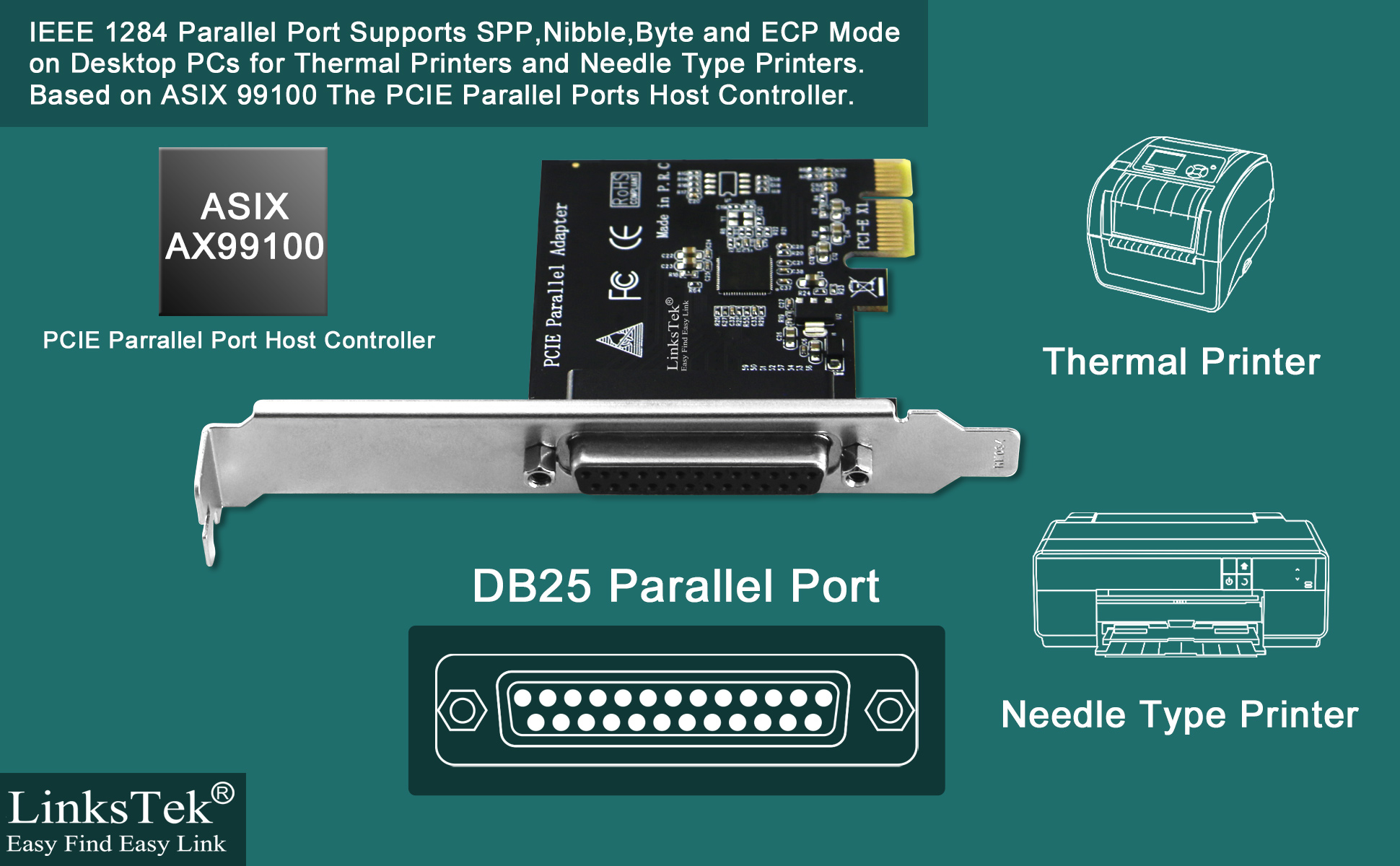

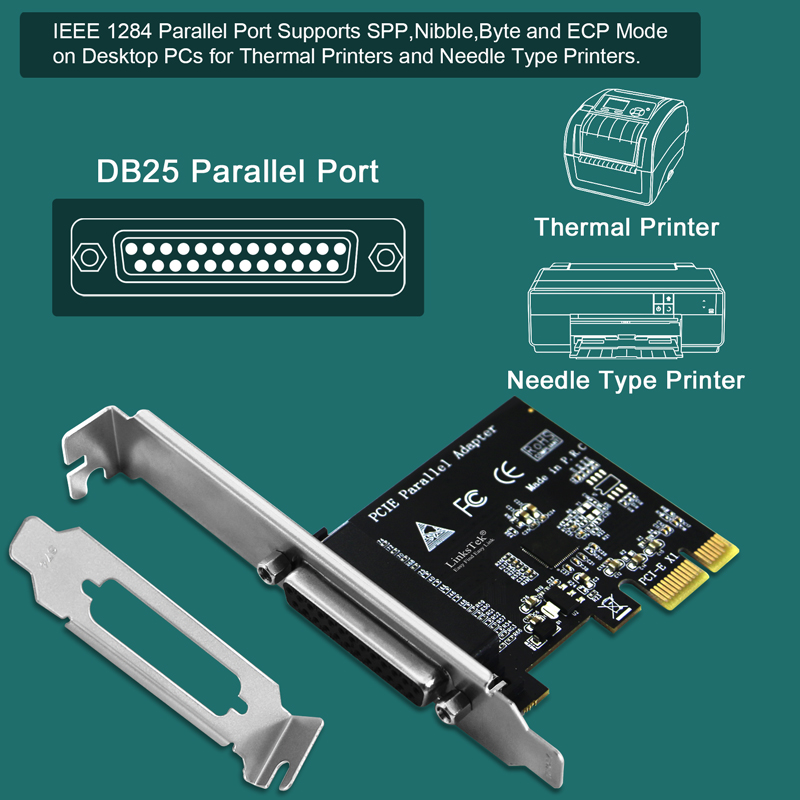

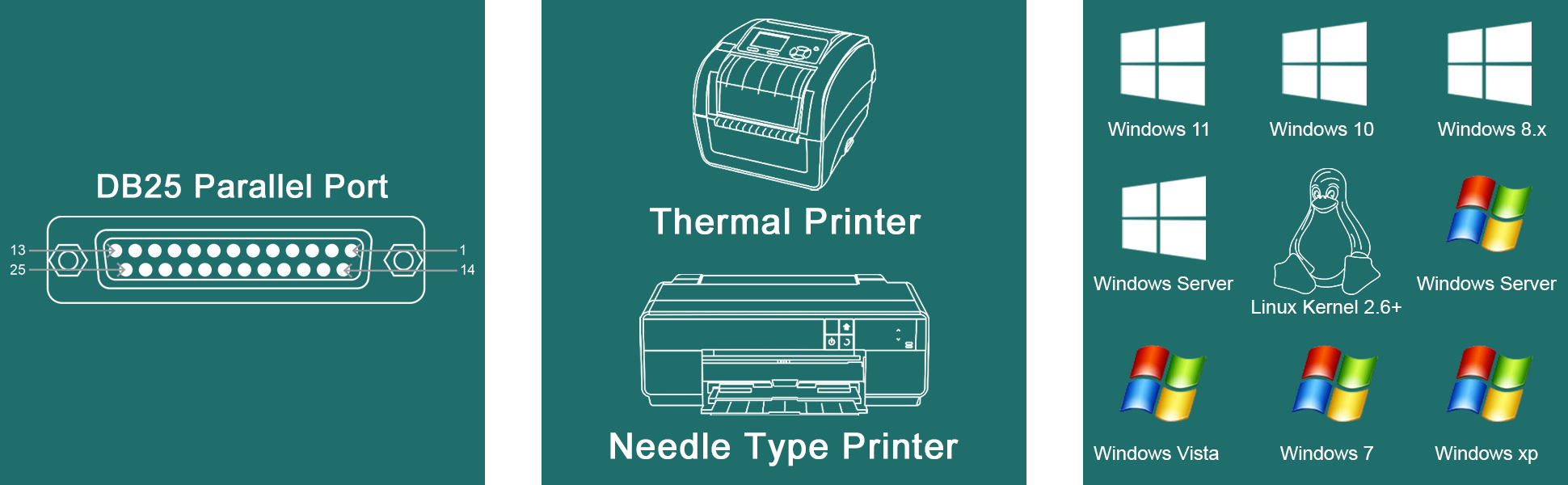

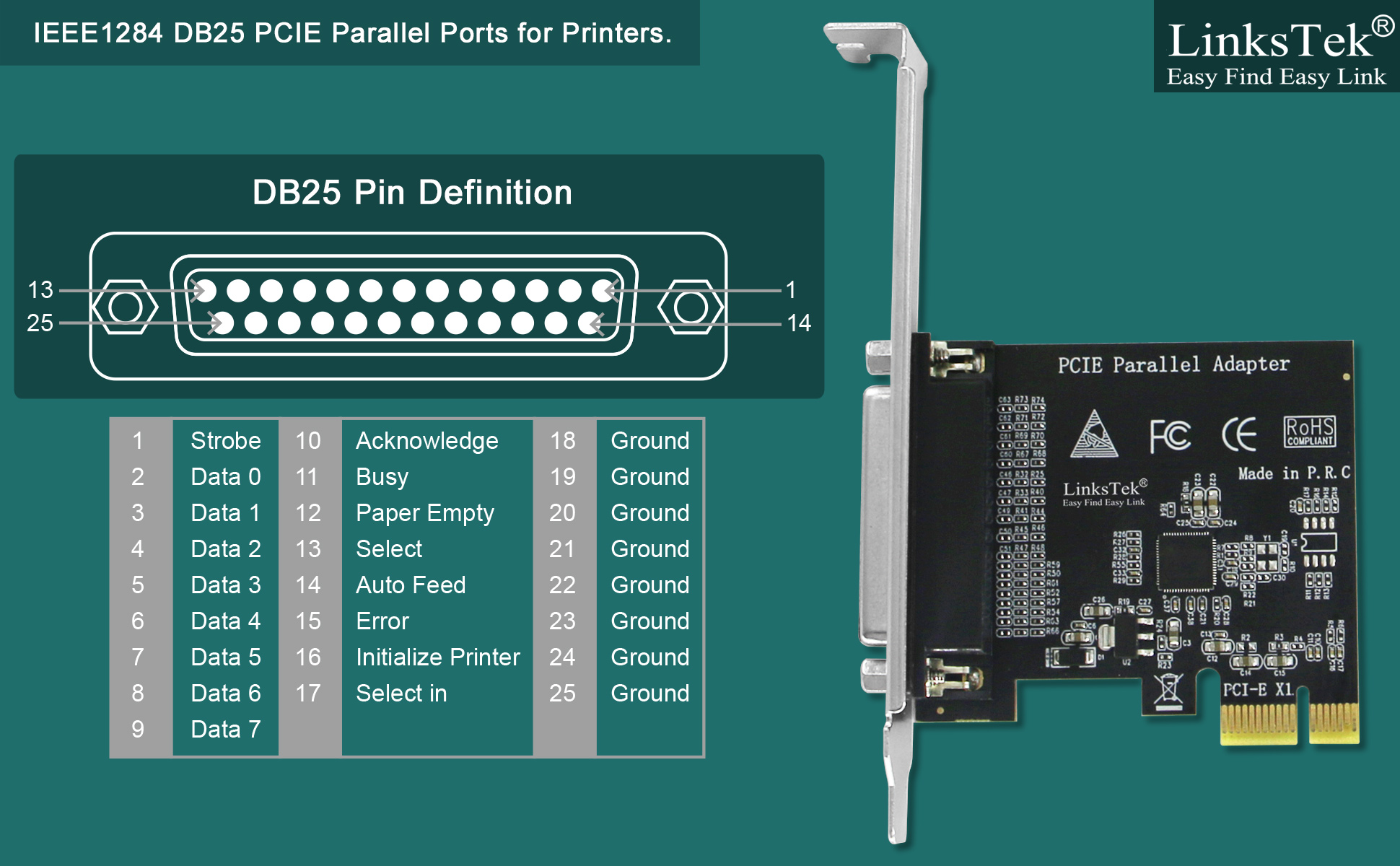

1. IEEE 1284, DB25 Pin Parallel LPT Port: Fully compatible with IEEE 1284 standard DB25 pin Parallel LPT port. Will light up DB25 ports devices on desktop PCs.
2. Multiple Parallel LPT Port Printers: Supports ECP, EPP, SPP, Nibble, Byte mode will work on most of parallel port peripherals device such as printers, scanners, CD-R/RW drives, memory card readers, bar code scanners etc.
3. Windows and Linux Systems: Compatible System: Need install driver on Windows 11, 10, 8.x, 7, Vista, XP, (32/64). Need compile driver on Linux Kernel 2.6.x, 3.x, 4.x, 5.x.

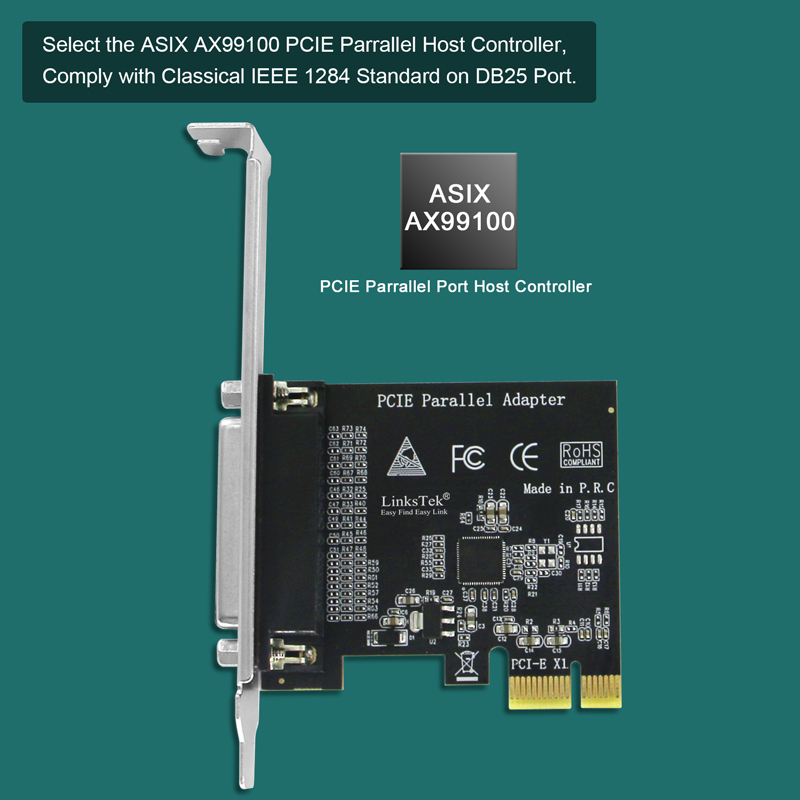

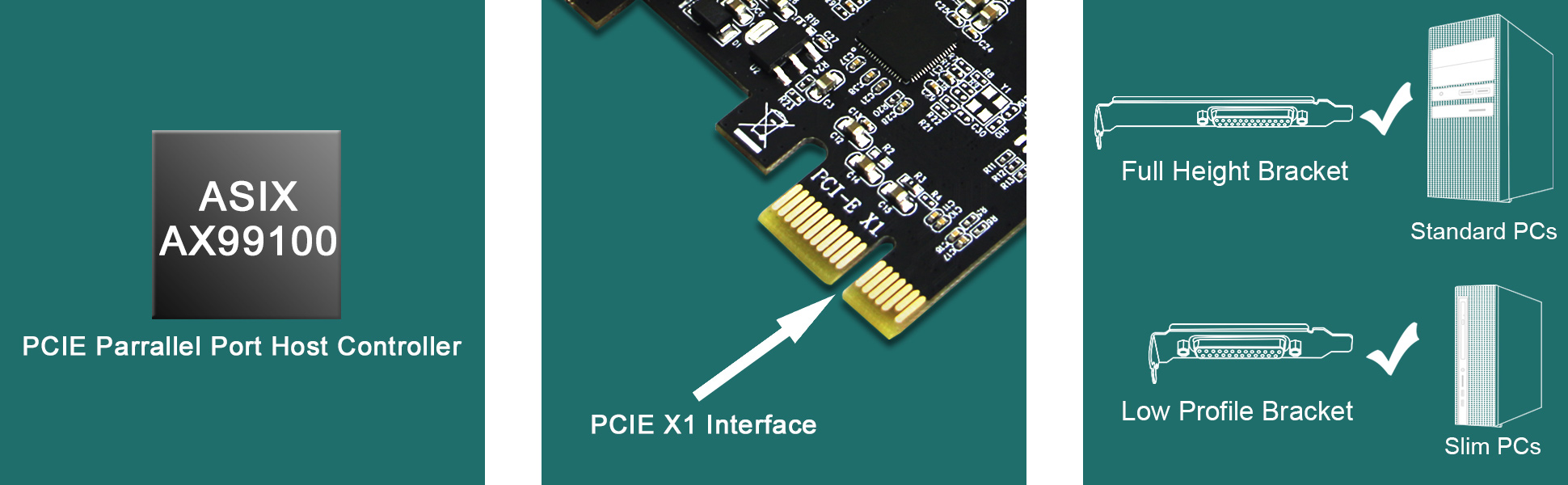

1. ASIX AX99100 Chipset: Select the most stable PCIE to Parallel Ports Host Controller ASIX AX99100,will works on most AMD,INTEL,ARM hardware platform. Will support most of Windows and Linux systems

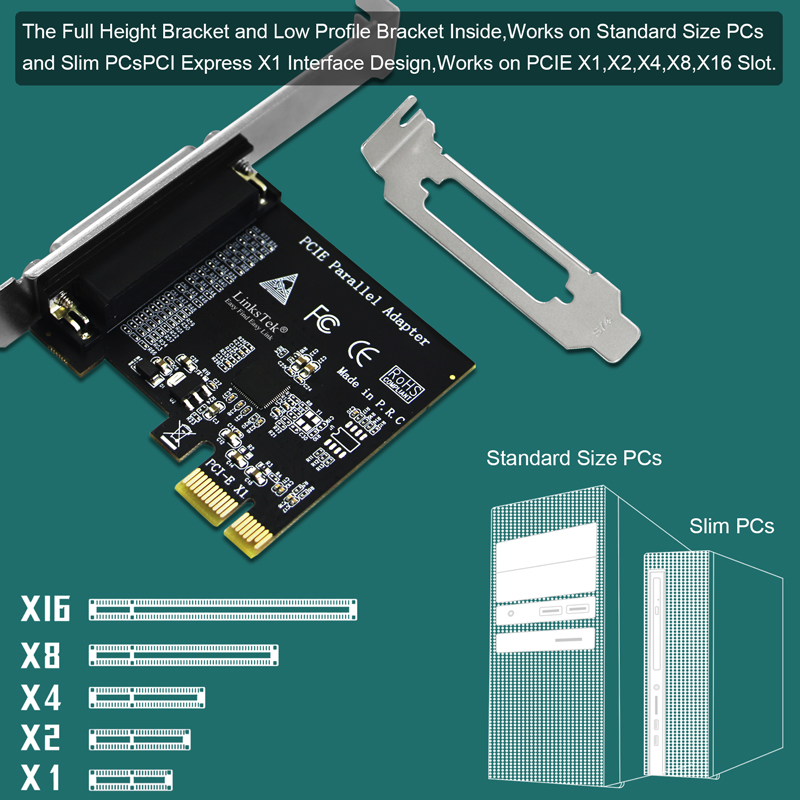

2. PCIE X1 Interface: PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. IMPORTANT NOTE: Users better make sure PC's have 1X empty PCIE slot before purchase.

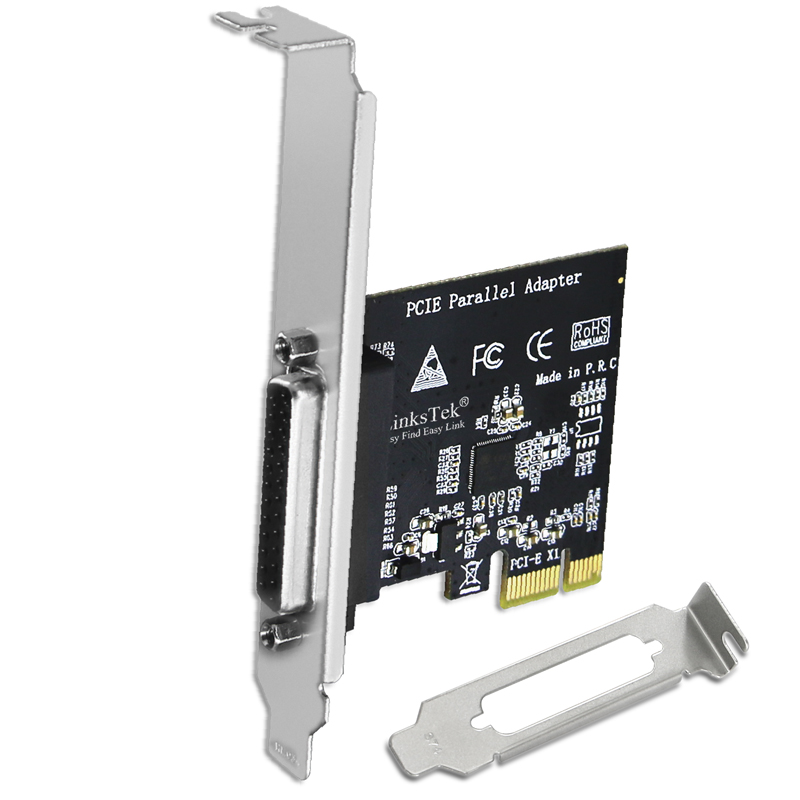

3. Slim PCs and Full Size PCs: The full height bracket mounted on the PCIE parallel card, will work on standard size PCs. The low profile bracket in the package, will works on slim PCs.
Product Description:
LinksTek PCIE-PA1 is a PCI Express X1 interface to 1-Ports DB25 parallel LPT port card. It is based on ASIX AX99100 PCIE to parallel host controller solution, will compatible with most of Intel, AMD and ARM hardware platform on Windows OS and Linux kernel systems. Allow users add 1-Parallel DB25/LPT port on desktop PCs, working stations or industrial device by a single PCIE slot. Fully support IEEE 1284 protocol, Supports ECP (enhanced capability port), EPP (enhanced parallel port), SPP (standard parallel port), Nibble, Byte mode will work on most of parallel port peripherals device such as printers, scanners, CD-R/RW drives, memory card readers, bar code scanners etc.
Compatible System: Windows 11, 10, 8.x, 7, Vista, XP, (32/64), Linux Kernel 2.6.x, 3.x, 4.x, 5.x.
NOTE:

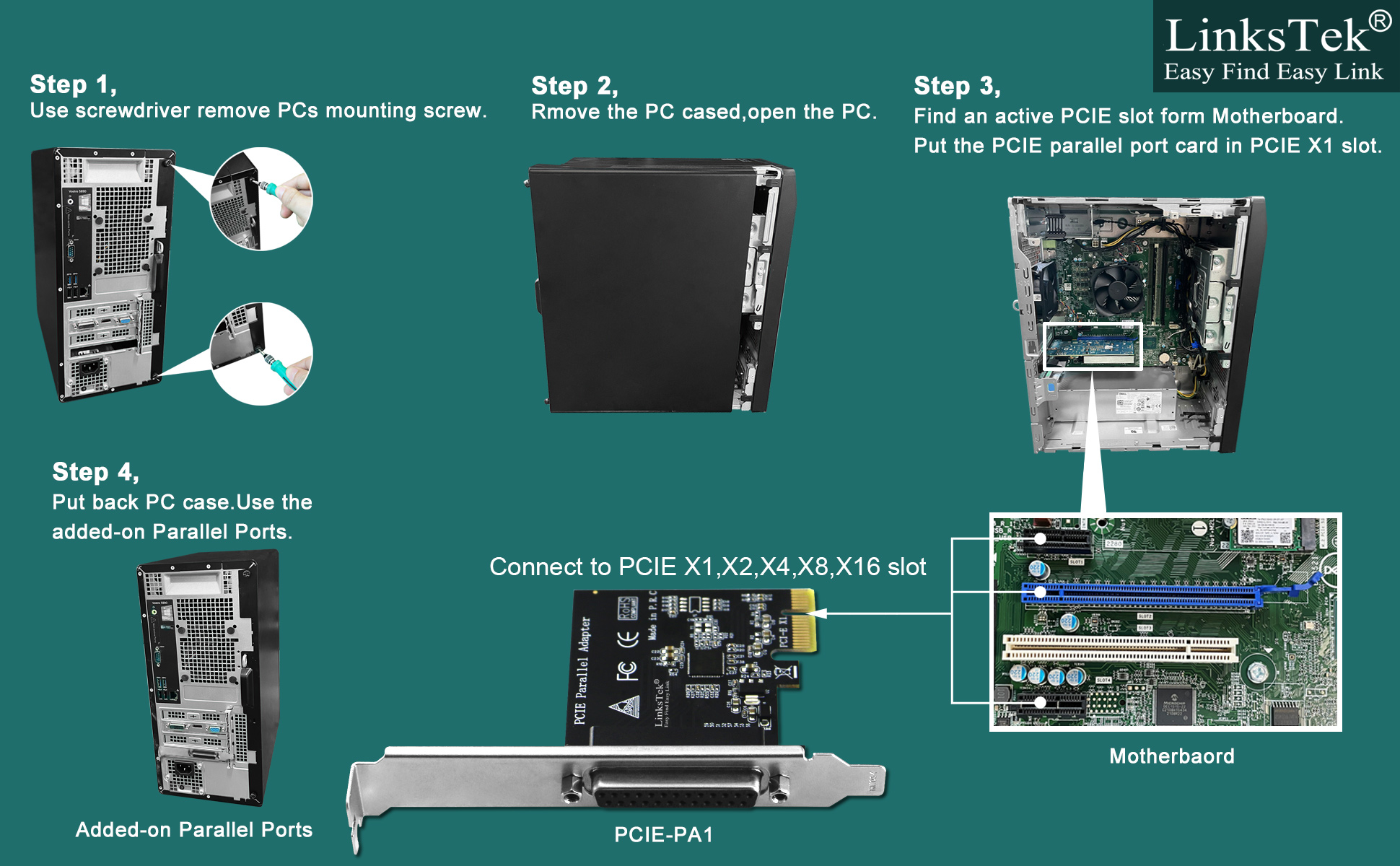

1. Make sure PCs have one empty PCIE slot.
2. Please user screwdriver changes to low profile bracket if using slim PCs.
3. Please refer user manual install correct driver from Mini-CD on PCs system.
Package List: 1X PCIE-PA1 1X Mini CD 1XUser Manual 1X Low Profile Bracket
