PCIE-U302A

Buy at Amazon
Cooperation

PCIE-U302A

Model: PCIE-U302A

Connector Interface: PCIE X1

Compatible Device: USB-A Interface Devices

Compatible System: Windows 11, 10, 8.1, 8, 7, XP, Vista (32/64bit)

Windows Server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019, 2022 (32/64bit)


PCIE to 2X Superspeed USB 3.1GEN1 (USB 3.0) 5Gbps Max Speed Ports for Multiple Function USB Devices

This LinksTek 2-Ports PCI Express USB 3.1 GEN 1 type A 5Gbps USB expansion card is based on ASMedia ASM1042 USB 3.1 GEN 1 host controller. It is designed on PCIE 2.0 X1 signal, will provide 5Gbps total bandwidth for 2X USB-A ports. It will allow desktop PCs or working stations add 2X 5Gbps max USB 3.1 GEN 1 type A ports for USB device data transmission which include USB HDD/SSD enclosure, USB universal docking station, USB Hub, USB KVM switch, VR-System, USB graphic adapters and more. Built in LinksTek Smart Power Distribution Technology allow USB card to get 5V/2A 10W power supply on each port. Make sure connected USB device works on 5Gbps max speed.

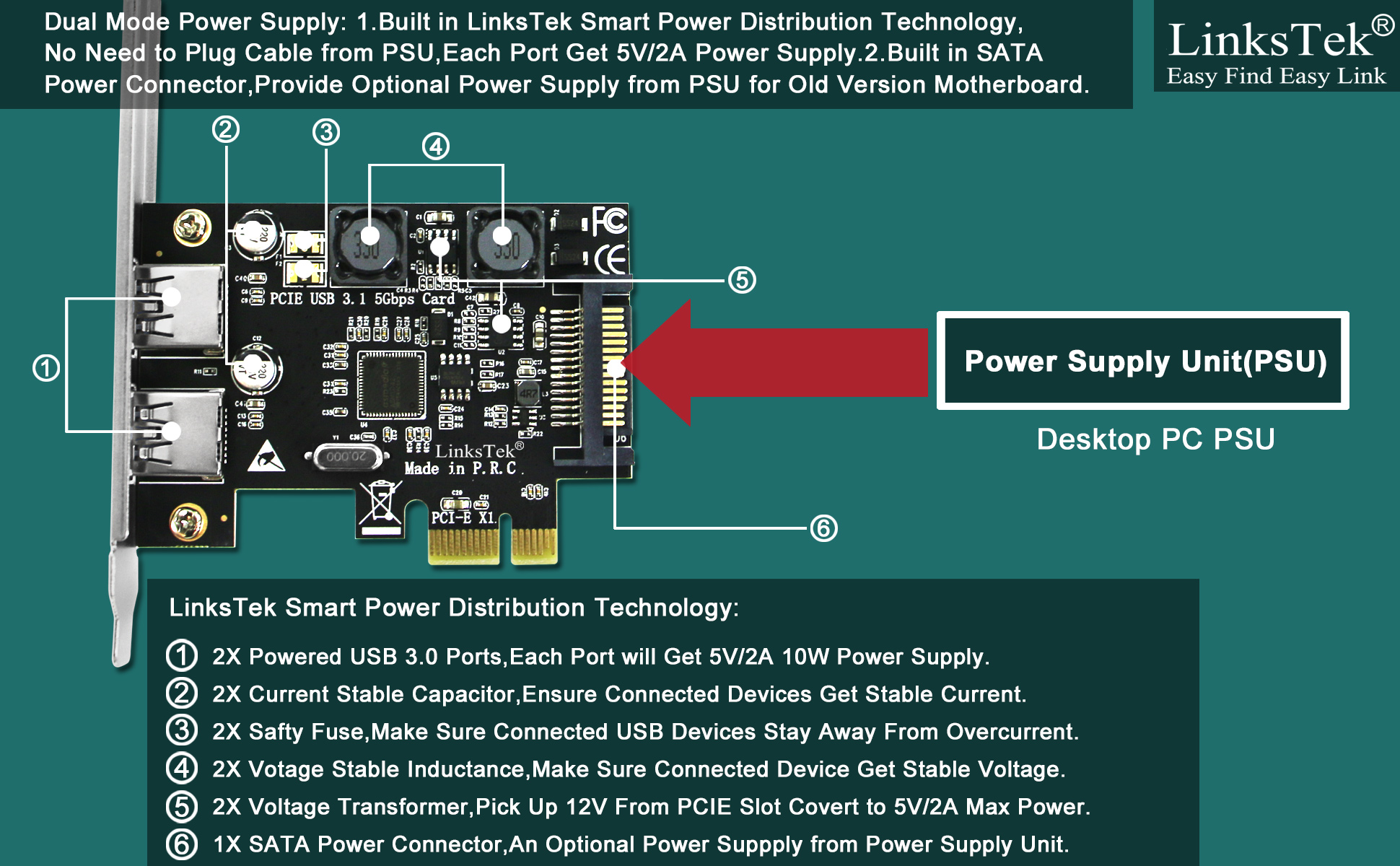

LinksTek Smart Power Distribution Technology and Optional 15Pin SATA Power Supply

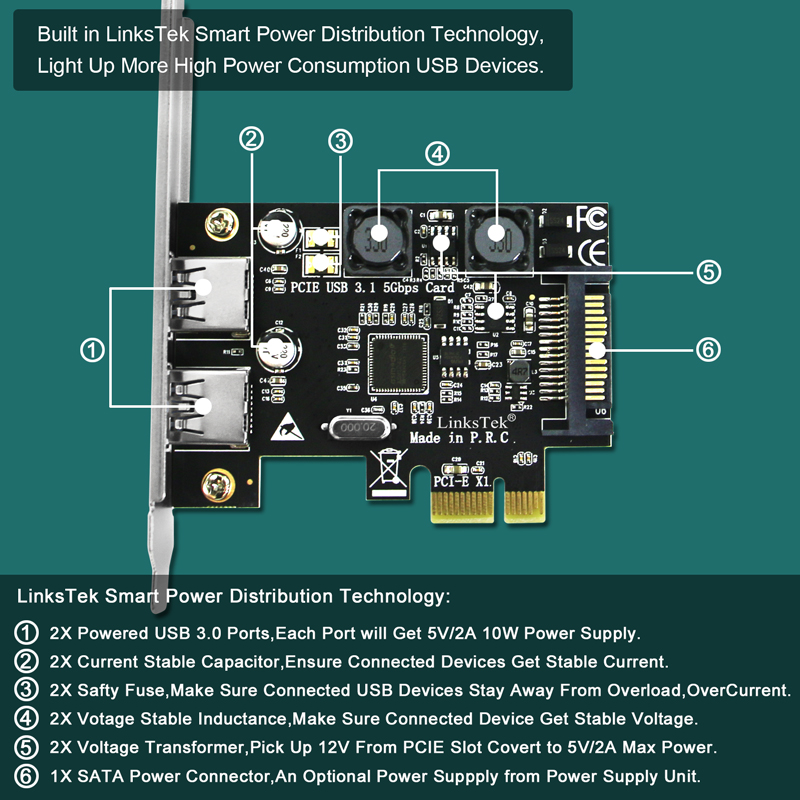

LinksTek Smart Power Distribution Technology is a new solution to provide more power supply on PCIE USB Cards. The previous versions of PCIE USB card need to plug an external power cable from PSU. PCIE device can get 75W(12V/6.25A) max power from motherboard. LinksTek added 2X voltage transformer on USB card, pick up 12V/2A from motherboard and transfer to 5V/4A. Each USB port will get 5V/2A 10W max power for connected USB device. Apart from this, LinksTek Smart Power Distribution Technology built 2X Safety Fuse, 2X voltage stable capacitor and 2X current stable inductance on USB Ports will makes sure users never burn USB device.

Second Power Option for Old Type Motherboard: LinksTek also add 1X 15 PIN SATA Power Connector on the USB card to help some old type Motherboard that can not provide enough power from PCIE slot.

Dual Power Supply Will Make Sure This USB Card Woks on All Type Motherboard. Add 2X 5Gbps USB Ports on Desktop PCs.

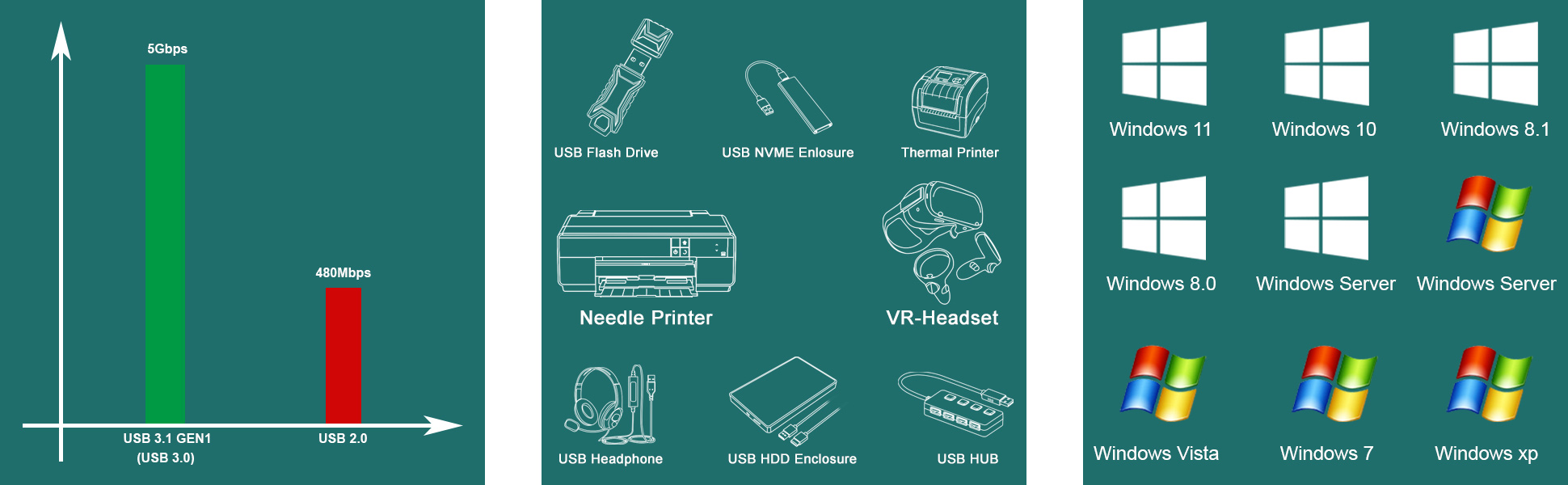

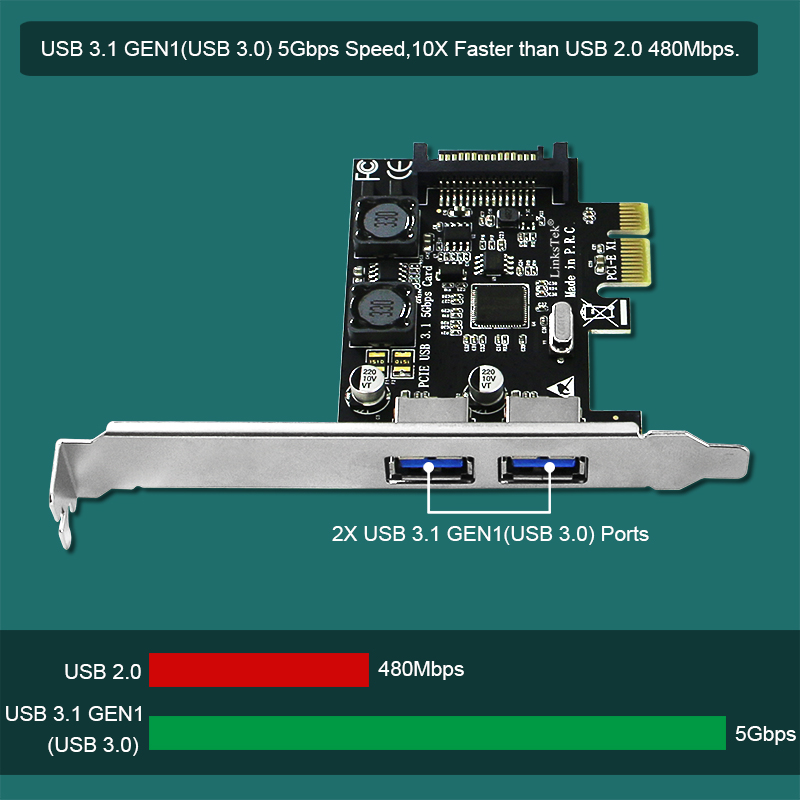

1. Superspeed 5Gbps Max: 2X USB 3.1 GEN 1 Type A Ports, Each USB Ports will Get 5Gbps Max Speed for Connected USB Devices.

2. Multiple USB Devices: PCIE-U302A Supports Many USB-A Interface Devices Such as USB Flash Drive, USB NVME Enclosure, Printers, VR-Headset, USB Headphone, USB HDD Enclosure and USB HUBs.

3. Most Windows PCs: Plug and Play on Windows 11, 10, 8.1, 8 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit).

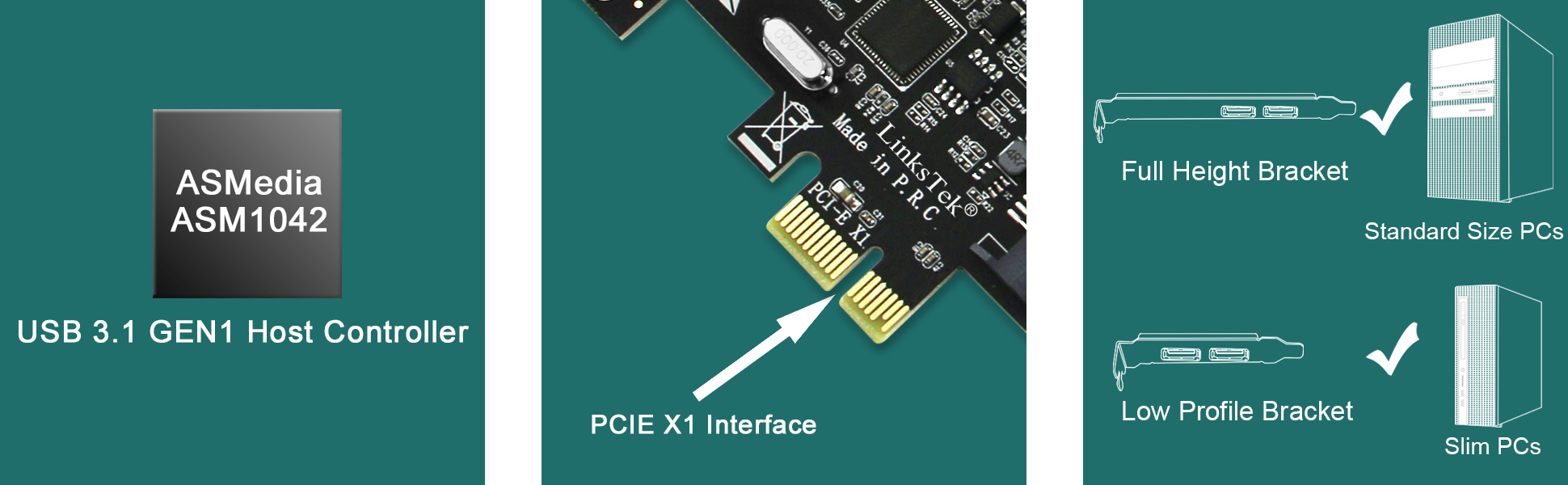

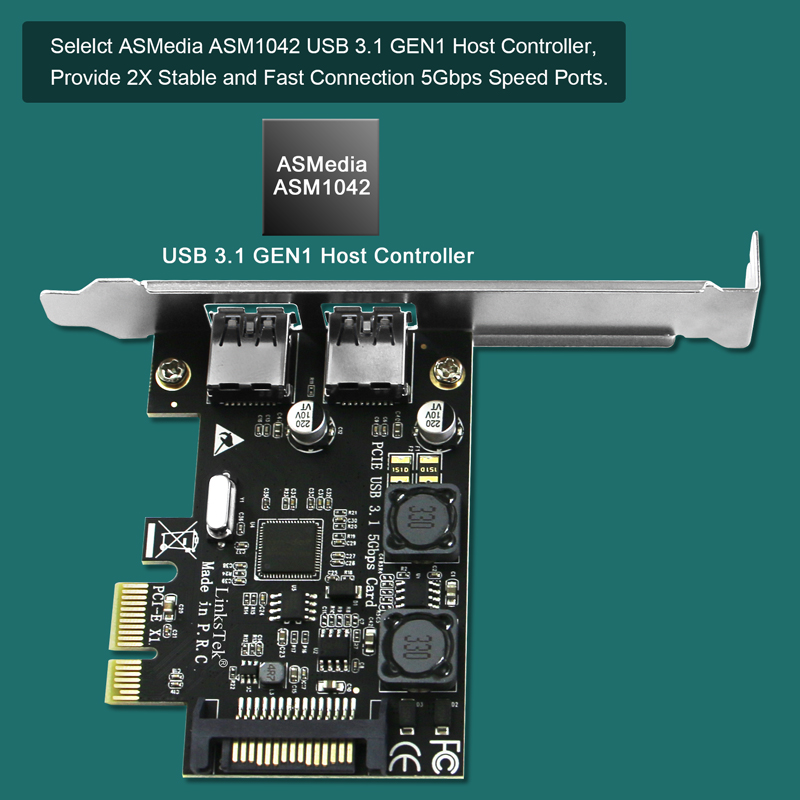

1. ASMedia ASM1042: Select the ASMedia ASM1042 USB 3.1 GEN1 Host Controller, Provide 2X USB 3.1 GEN1(USB 3.0) Ports on Desktop PCs. 2X USB-A Ports Will Share 5Gbps Total Bandwidth.

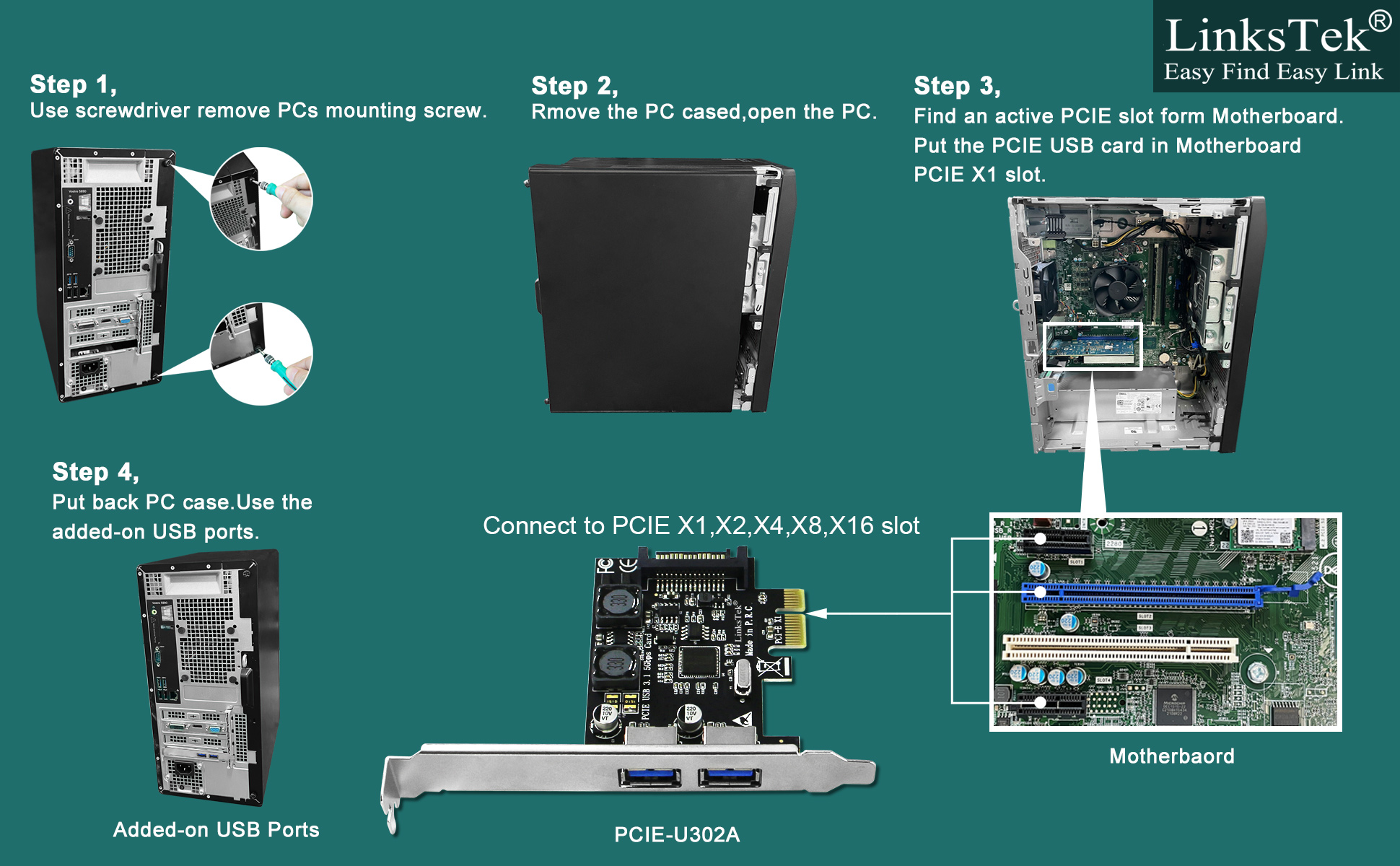

2. PCIE X1 Interface: PCIE X1 Interface Design, Will Work on PCIE X1, X2, X4, X8, X16 Slot. Provide 5Gbps PCIE Bus Connection Speed.

3. Slim PCs and Standard Size PCs: Full Height Bracket and Low Profile Bracket Inside, Will Works on Slim PCs and Standard Size PCs.

PCIE U302A Product Description:

This LinksTek 2-Ports PCI Express USB 3.1 GEN 1 type A 5Gbps USB expansion card is based on ASMedia ASM1042 USB 3.1 GEN 1 host controller. It is designed on PCIE 2.0 X1 signal, will provide 5Gbps total bandwidth for 2X USB-A ports. It will allow desktop PCs or working stations add 2X 5Gbps max USB 3.1 GEN 1 type A ports for USB device data transmission which include USB HDD/SSD enclosure, USB universal docking station, USB Hub, USB KVM switch, VR-System, USB graphic adapters and more. Built in LinksTek Smart Power Distribution Technology allow USB card to get 5V/2A 10W power supply on each port. Make sure connected USB device works on 5Gbps max speed.

LinksTek Smart Power Distribution Technology: LinksTek Smart Power Distribution Technology is a new solution to provide more power supply on PCIE USB Cards. The previous versions of PCIE USB card need to plug an external power cable from PSU. PCIE device can get 75W(12V/6.25A) max power from motherboard. LinksTek added 2X voltage transformer on USB card, pick up 12V/2A from motherboard and transfer to 5V/4A. Each USB port will get 5V/2A 10W max power for connected USB device. Apart from this, LinksTek Smart Power Distribution Technology built 2X Safety Fuse, 2X voltage stable capacitor and 2X current stable inductance on USB Ports will makes sure users never burn USB device.

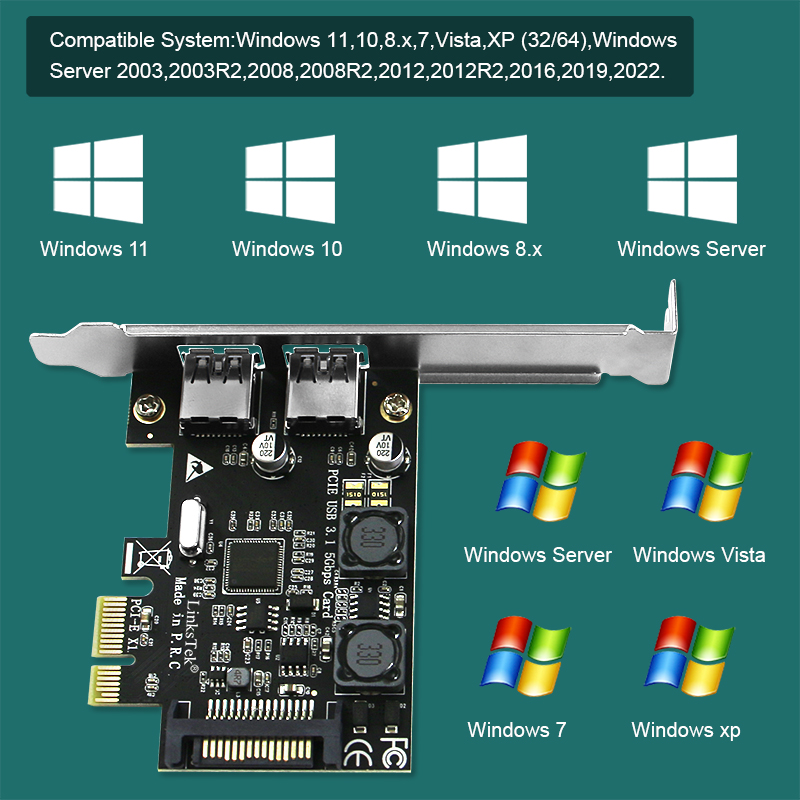

Compatible System:

1. Plug and Play on Windows 11, 10, 8.1, 8 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022.

2. Need to install driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit).

3. Works on most mainstream Linux.

Package: 1X PCIE-U302A 1X User Manual 1X Locking Screw 1X Low Profile Bracket
