QUALCOMM Atheros AR9462 Wireless Network Card, 2.4GHz 300Mbps and 5GHz 300Mbps

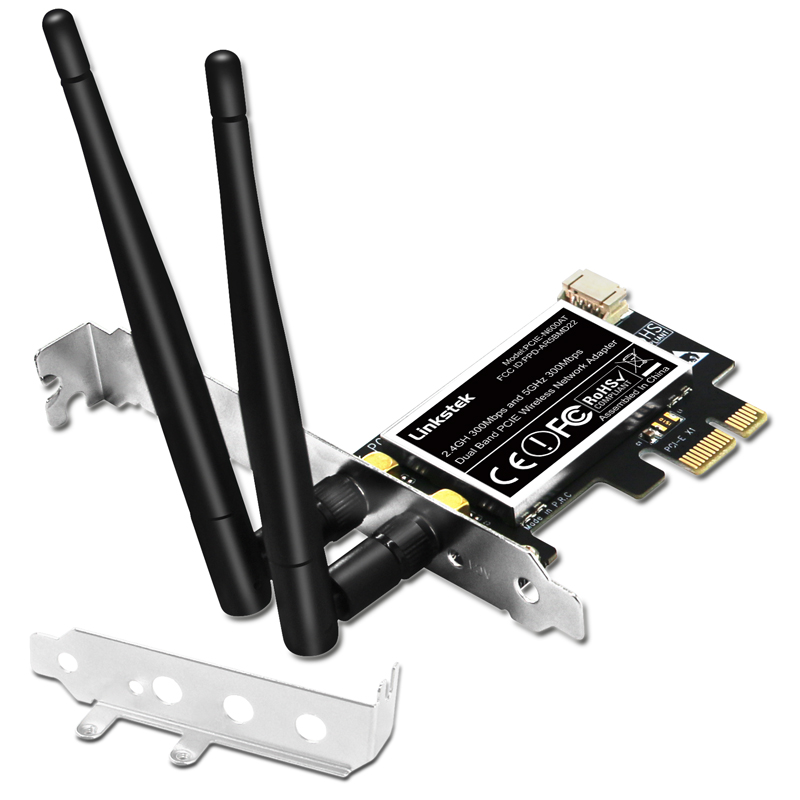

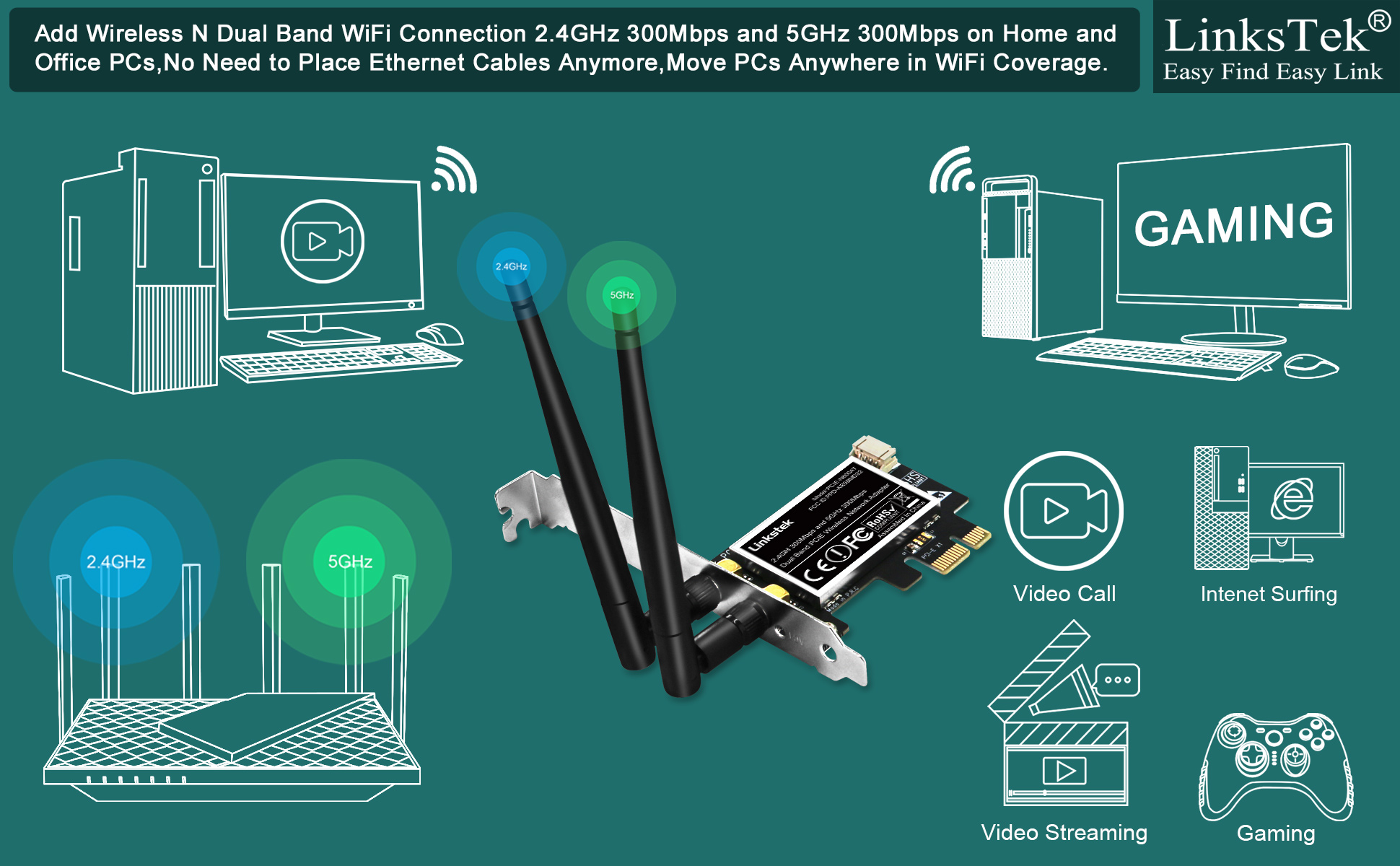

LinksTek PCIE-N600AT is a wireless N dual band 600Mbps PCIE Wi-Fi card. It is based on QUALCOMM Atheros wireless N AR946X network adapter. It will provide 2X2 MIMO network connection at 2.4GHz 300Mbps and 5GHz 300Mbps on desktop PCs or Servers for internet surfing, online gaming, HD video streaming, and video calls etc. It provides the Wi-Fi audio adapter for home or office use audio device transmission which includes Wi-Fi mice, keyboard, speaker, Wi-Fi earphones and headphones. It also takes Wireless AP and Wi-Fi Receiver working mode on desktop PCs.

Product Specification:

Model: PCIE-N600, Wi-Fi Features: 2X2 MIMO, Wi-Fi Channel Utilization: 20/40MHz, Wi-Fi Spectral Frequency: 2.4 GHz/5 GHz

Packed with both Low-Profile Bracket and Full Height Bracket for Slim and Full Height desktop PCs or Servers.

Peak speed: 300Mbps 2.4GHz/300Mbps 5GHz 300Mbps, Compatible Wi-Fi Standards: compatible with IEEE802.11 A/B/G/N/AC/AX

Technical Specification:

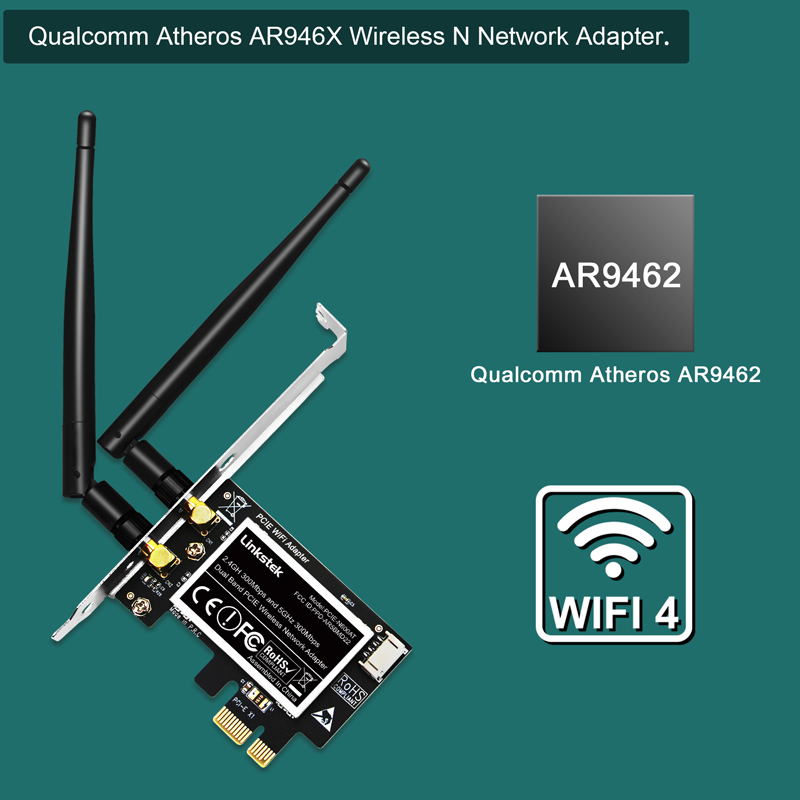

1. Qualcomm Atheros AR9462: Select the Qualcomm Atheros AR9462 WiFi major-chipset, provide goods compatibility on Intel, AMD and ARM based platform. The advanced MIMO technology will ensure stable wifi connection.

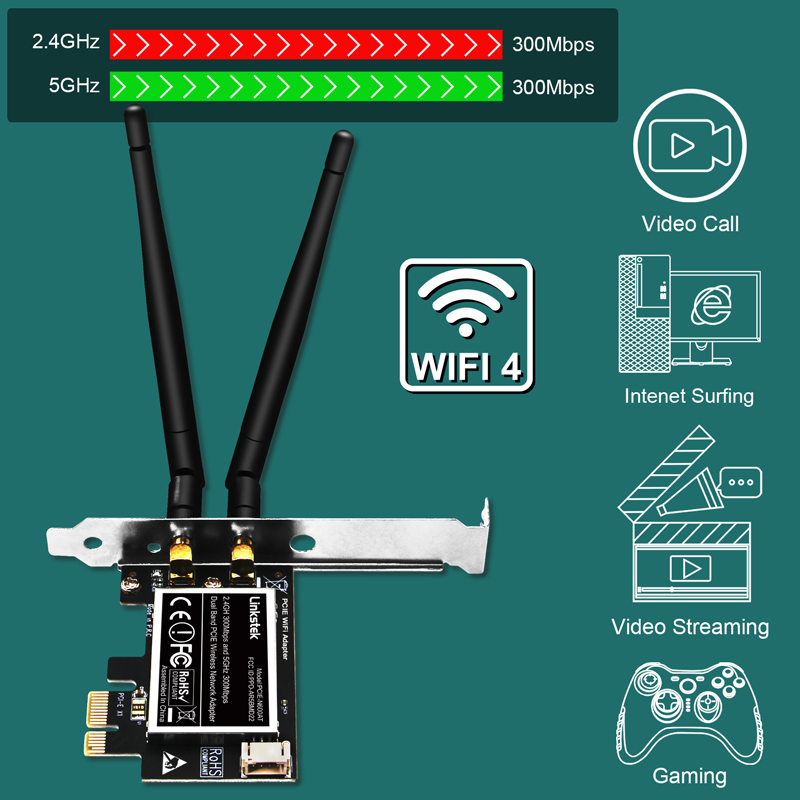

2. Wireless N 600Mbps Speed: Based on IEEE 802.11N WiFi 4, provide WiFi connection on 2.4GHz 300Mbps and 5GHz 300Mbps for connected PCs and Servers.

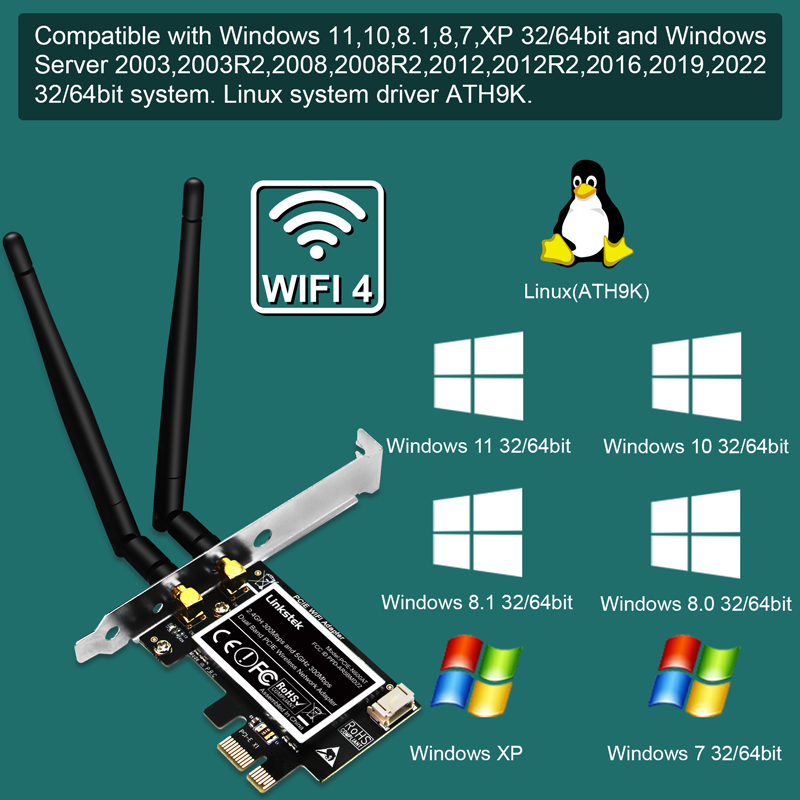

3. Works on Most Windows: 1. Driver free on Windows 11, 10, 8.1, 8 (32/64bit) and Window Server 2012, 2012R2, 2016, 2019 (32/64bit) systems. 2. Need to install driver on Windows 7, XP (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Linux system please refer to ATH9K.

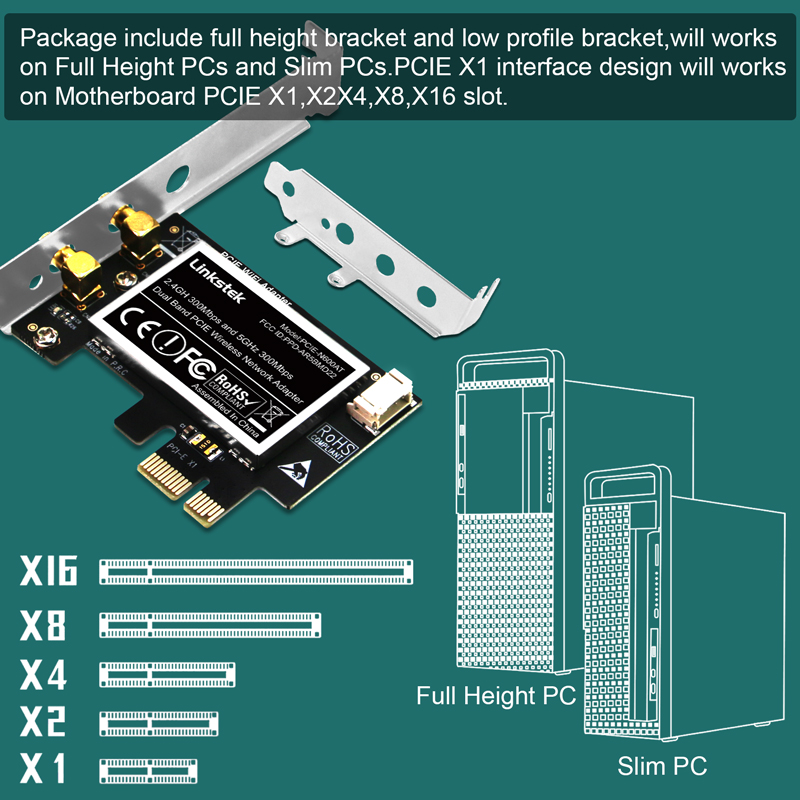

1. PCIE 2.0 X1 Interface: Designed on PCIE 2.0 standard on PCIE X1 slot, will compatible with PCIE 1.0, 2.0, 3.0 standard, on PCIE X1, X2, X4, X8, X16 slot.

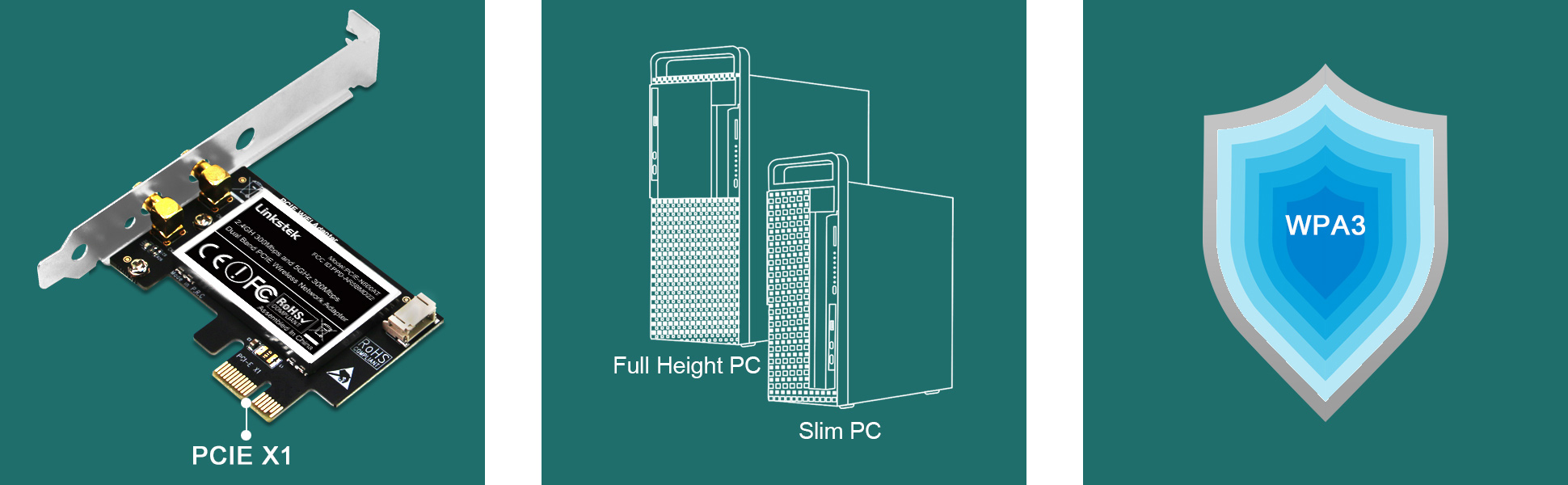

2. Works on Slim and Full Height PCs: This item will come with full height bracket for standard size PCs and the low profile bracket for slim PCs.

3. Protect Users Privacy: Comply with 64/128 WEP, WPA/WPA2, WPA3 and WPA-PSK, WPA2-PSK (TKIP, AES) wireless encryption, protect users’ network privacy.

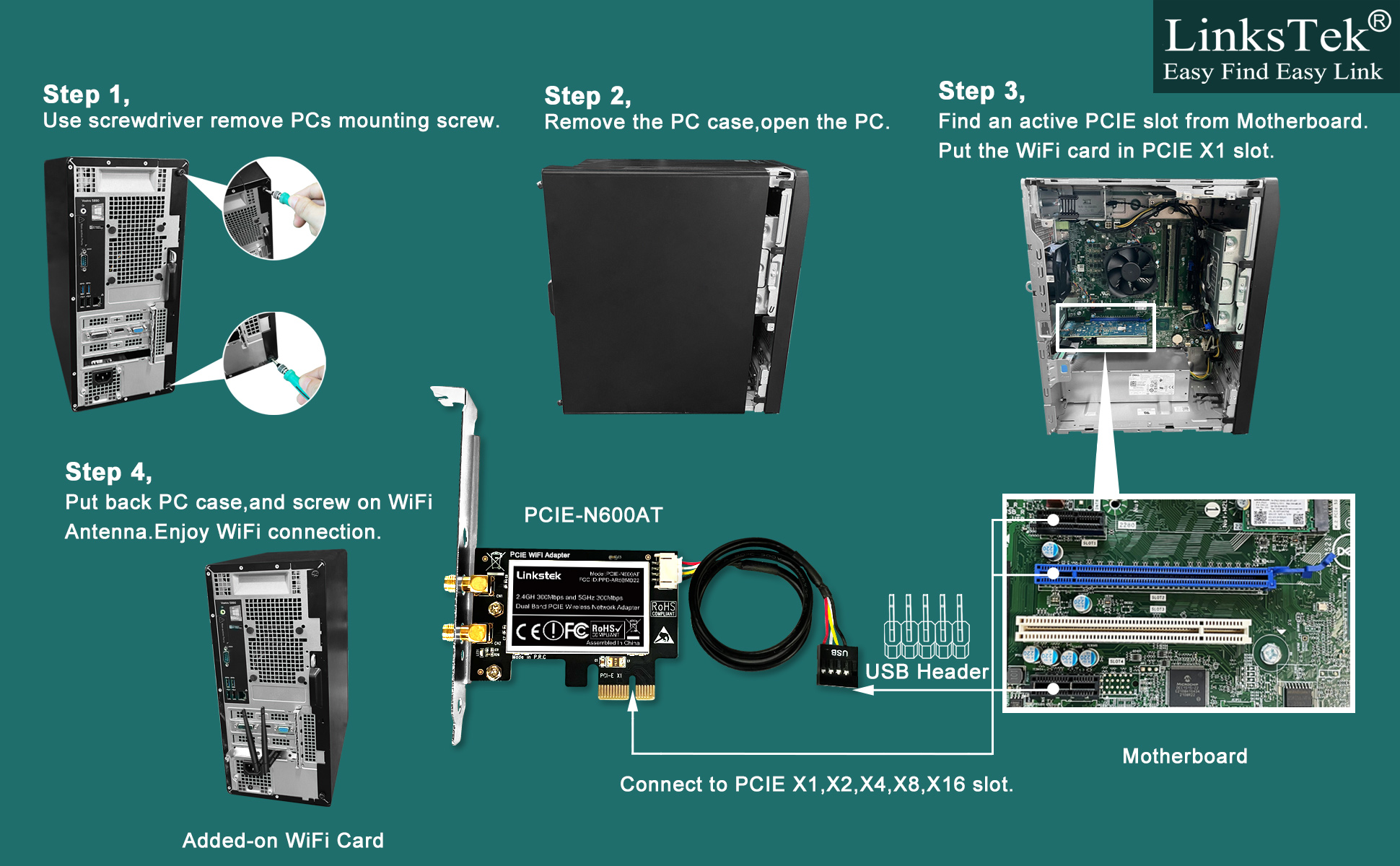

Easy Installation on Desktop PCs

Product Description:

LinksTek PCIE-N600AT is a wireless N dual band 600Mbps PCIE Wi-Fi card. It is based on QUALCOMM Atheros wireless N AR946X network adapter. It will provide 2X2 MIMO network connection at 2.4GHz 300Mbps and 5GHz 300Mbps on desktop PCs or Servers for internet surfing, online gaming, HD video streaming, and video calls etc. It provides the Wi-Fi audio adapter for home or office use audio device transmission which includes Wi-Fi mice, keyboard, speaker, Wi-Fi earphones and headphones. It also takes Wireless AP and Wi-Fi Receiver working mode on desktop PCs.

Technical Specification:

Model: PCIE-N600 Wi-Fi Features: 2X2 MIMO

Wi-Fi Channel Utilization: 20/40MHz Wi-Fi Spectral Frequency: 2.4 GHz/5 GHz

Packed with both Low-Profile Bracket and Full Height Bracket for Slim and Full Height desktop PCs or Servers.

Peak speed: 300Mbps 2.4GHz/300Mbps 5GHz 300Mbps Compatible Wi-Fi Standards: compatible with IEEE802.11 A/B/G/N/AC/AX

Compatible System:

1. Driver free on Windows 11, 10, 8.1, 8 (32/64bit) and Window Server 2012, 2012R2, 2016, 2019 (32/64bit) systems. 2. Need to install driver on Windows 7, XP (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Linux system please refer to ATH9K.

WARNING:

1. NOT for Windows Vista/MAC OS systems.

2. Users must change to Low-Profile bracket when use this on slim PCs.

3. PCIE X1 Interface design, users must make sure PCs have at least one empty PCIE slot before Purchase.

Package List: 1X PCIE-N600AT 1X User Manual 1X Mount Screw 1X Mini Driver CD 1X USB 2.0 Cable 1X Low Profile Bracket
