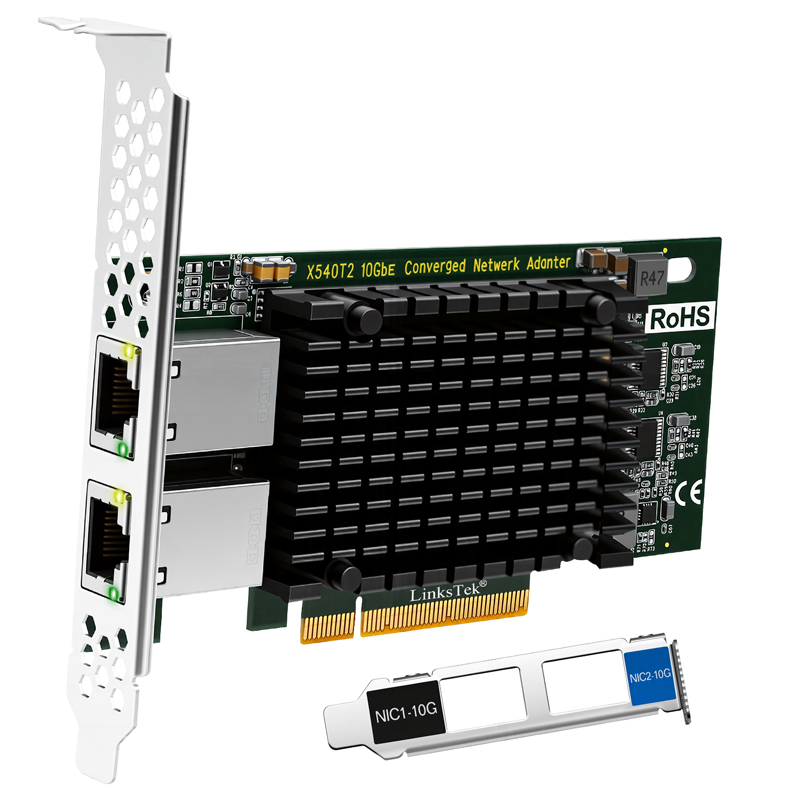

X540T2 PCIE x8 to Dual 10GbE RJ45 Ports Converged Networkt Adpater

 1. This LinksTek X540T2 is a PCIE 2.1 x8 interface to dual 10GbE RJ45 ports converged ethernet adapter that simplifies network migration to 10GbE for desktop PCs, network attached storage (NAS) and data centers, ideal for storage applications, virtualization, gaming and 8K ultra-HD video streaming.
2. Ethernet Controller: X540AT2 2X 10GbE Converged Ethernet Controller; Bus Interface: PCIE 2.1 x8; Ethernet Standard: IEEE 802.1p, 802.1Q, 802.3ad and 10GBASE-T; Ethernet Speed: 2X 10GbE and 1GbE; Ethernet Mode: IPv4, IPv6, TCP/ UDP; Ethernet Interface: Cooper RJ-45 connector; Cable Type: CAT-6A, 10GbE 100m, CAT-6 55m; Storage Over Ethernet: NFS, iSCSI and FCoE.
3. Supports Intel VT-C (Connectivity Virtualization), Virtual Machine Device Queues (VMDq), PCI-SIG SR-IOV, Flexible Port Partitioning (FPP), Intel DDIO (Data Direct I/O), and Intelligent Offloading. It is equipped with on-chip traffic management for Quality of Service (QoS), which is supported in both virtual and non-virtual environments.
4. Compatible Systems: 1. Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012. 2. Need to install driver on Windows 11, 10, 8.x, 7 32/64bit. 3. Linux supports IXGBE driver, need to compile driver by users.
5. ATTENTION: 1. PCIE X8 interface supports PCIE X8 or X16 LANE slot. 2. Supports 10GbE and 1GbE ethernet standard, do not support 5GbE and 2.5GbE mode. 3. Pre-installed full height bracket on X540T2 PCIE NIC card, low profile bracket included in the package.

 ATTENTION:
    1. PCIE X8 interface supports PCIE X8 or X16 LANE slot.
    2. Supports 10GbE and 1GbE ethernet standard, do not support 5GbE and 2.5GbE mode.
    3. Pre-installed full height bracket on X540T2 PCIE NIC card, low profile bracket included in the package.

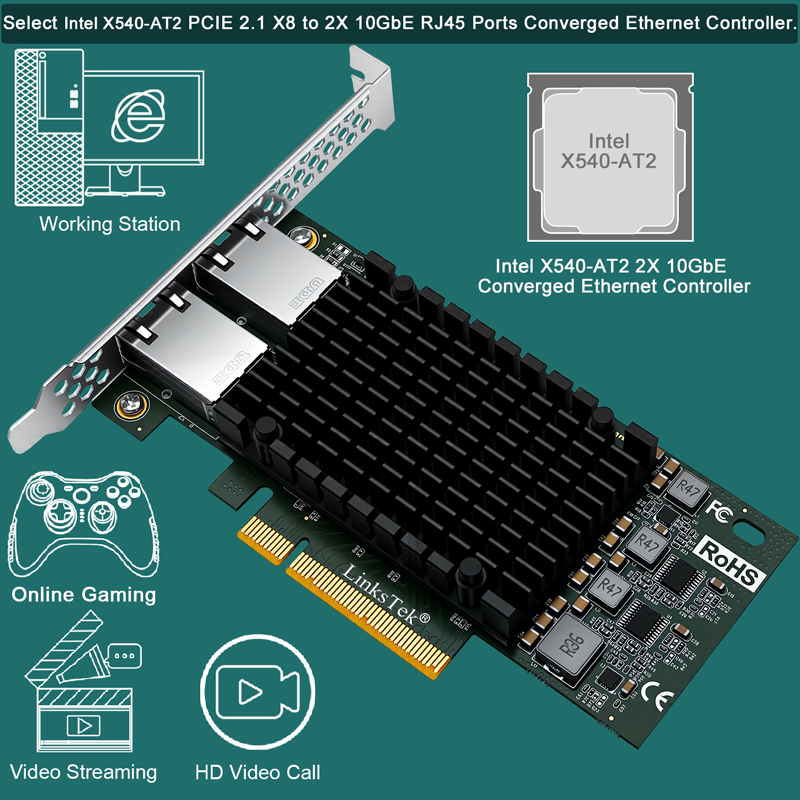

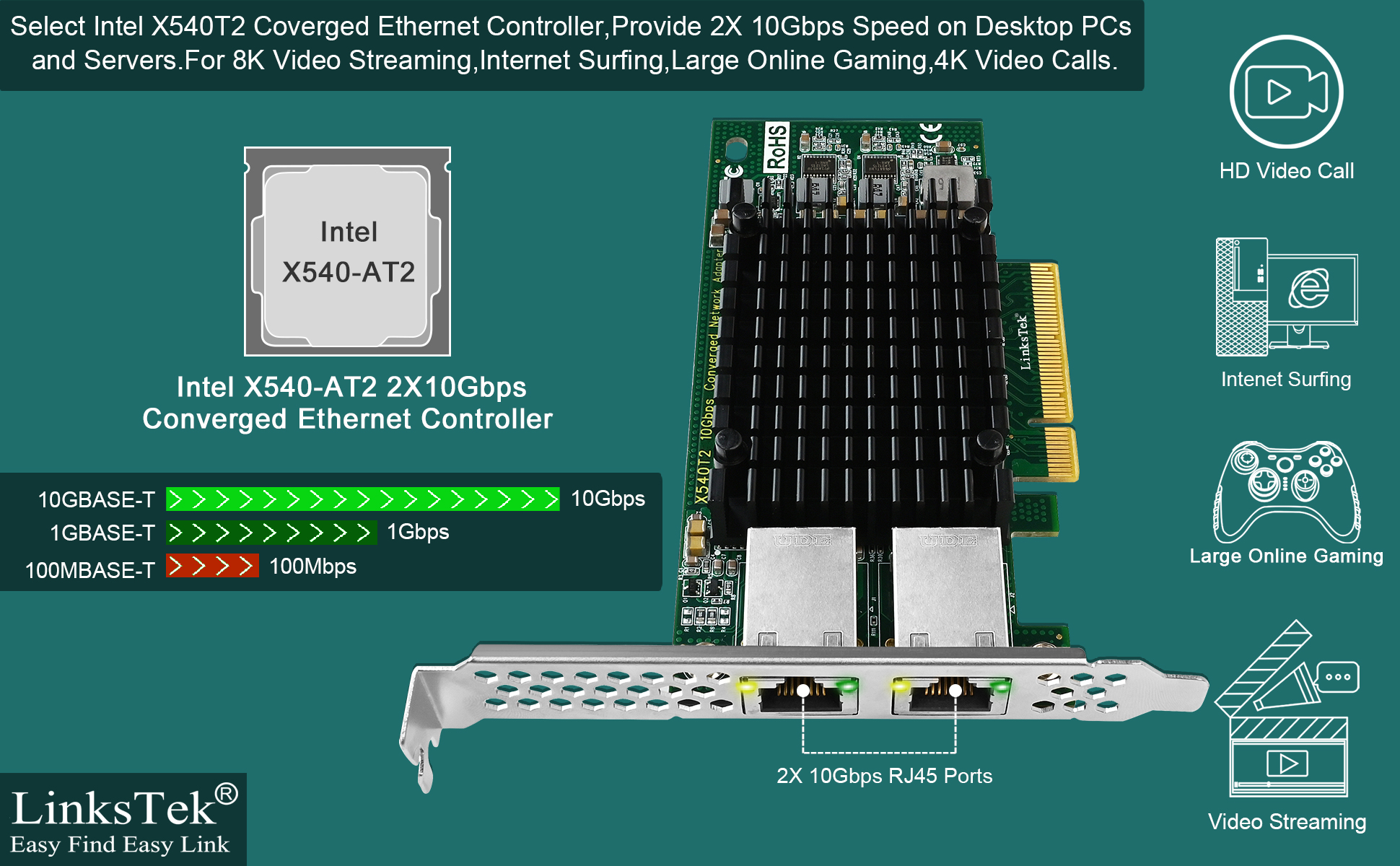

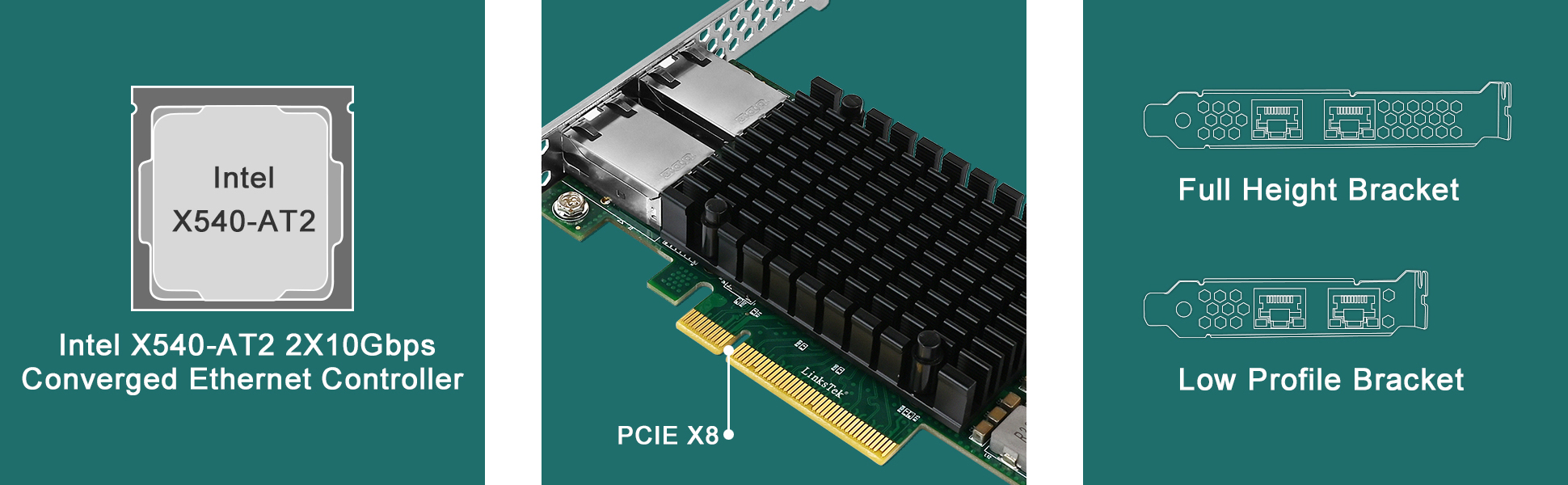

A.  1. Select the Intel X540AT2 2X 10Gb/s converged ethernet controller, provide 2X 10GbE ports on Desktop PCs will reduce the power consumption. 2. Will works on Intel, ARM and AMD platform.

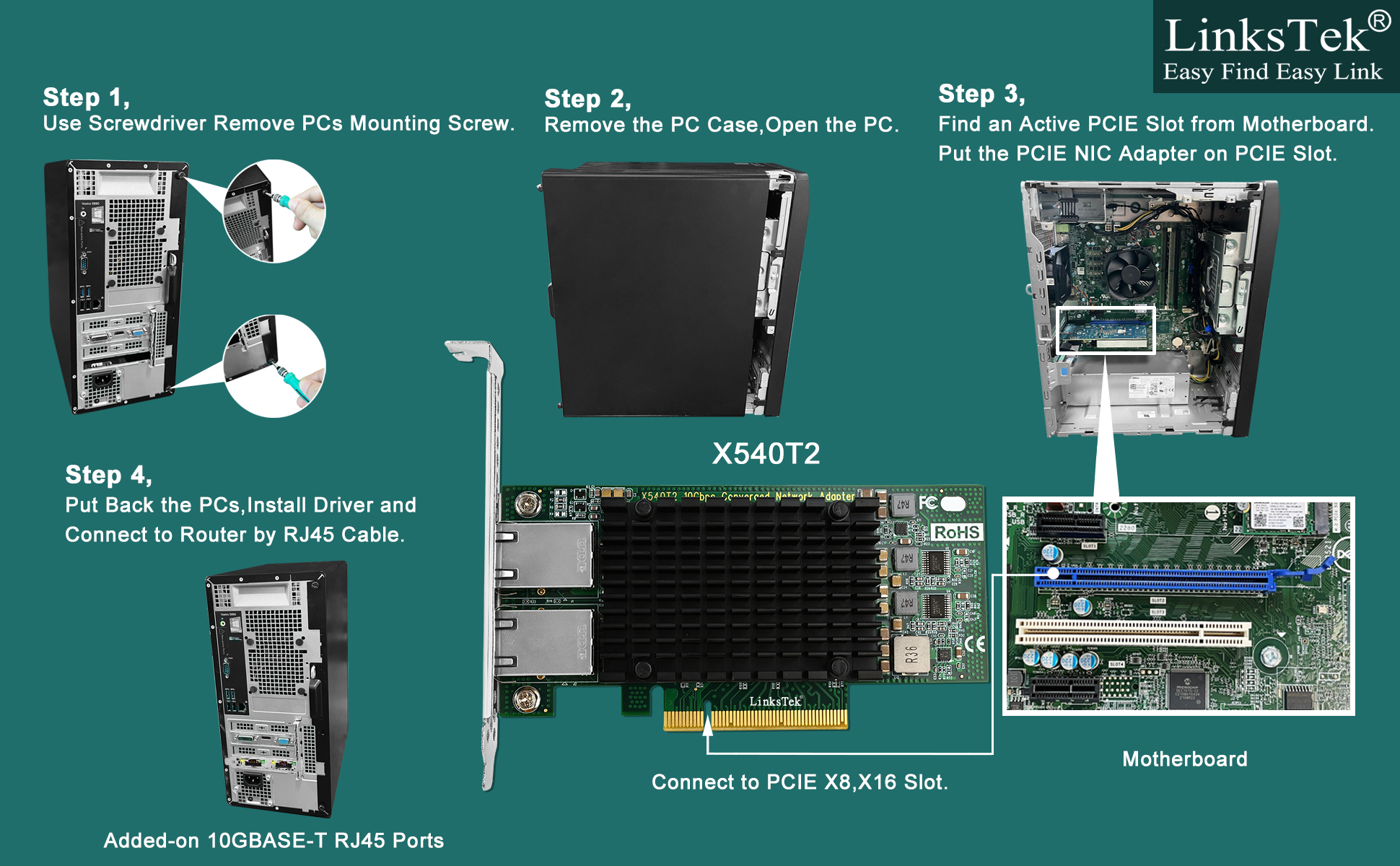

B.  1. PCI Express X8 interface design, will works on PCIE X8 and X16 LANE slot. 2. PCIE version 2.1 standard, will compatible with PCIE 2.x, 3.x and 4.x standard.

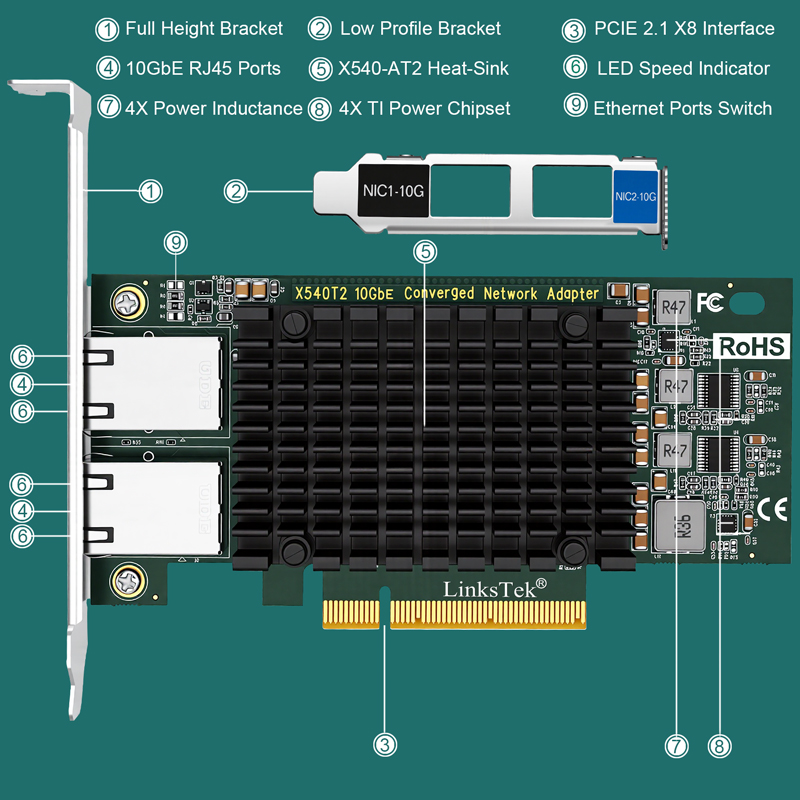

C.  1. Full height bracket mounted on the X540T2, will supports full height PCs. 2. The Low profile bracket in the package, will works on Slim PCs.

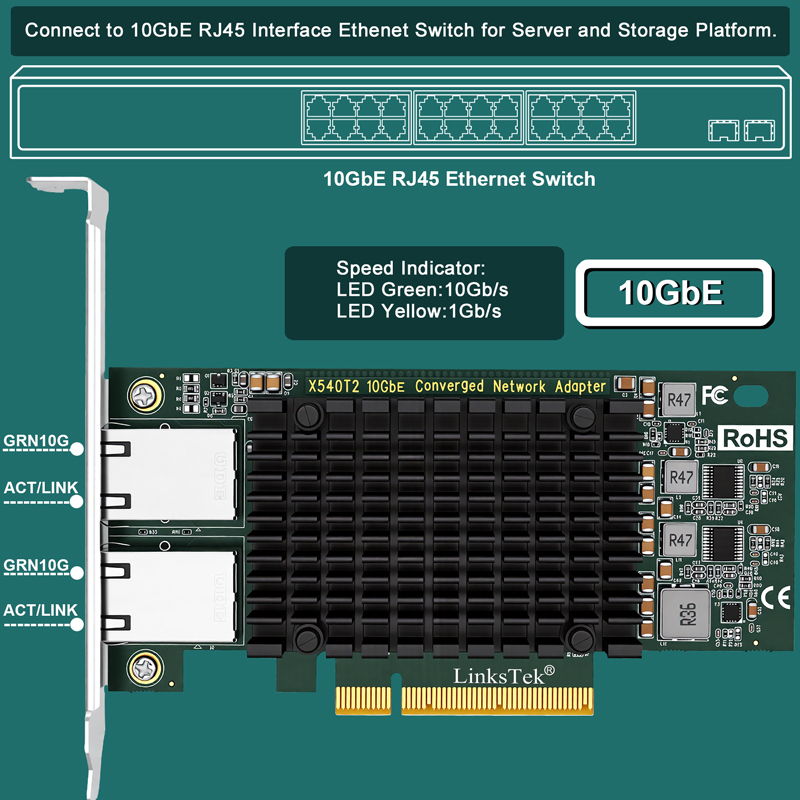

D.  1. Users will get 10Gb/s max speed on it's data center and desktop PCs. 2. Supports the 10GbE and 1GbE standard, do not support 2.5GbE and 5GbE standard.

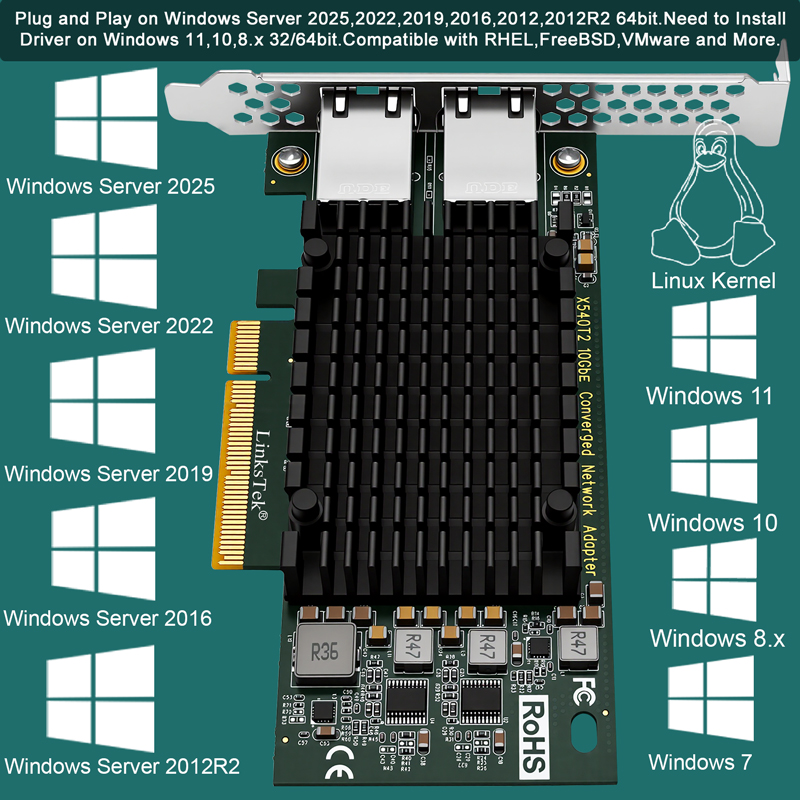

E.  1. Plug and play on Windows Server 2025, 2022, 2019, 2016, 2012R2, 2012 systems. 2. Need to install driver on Windows 11, 10, 8.x, 7 32/64bit systems. 3. Linux supports IXGBE driver, no tech-support for Linux.

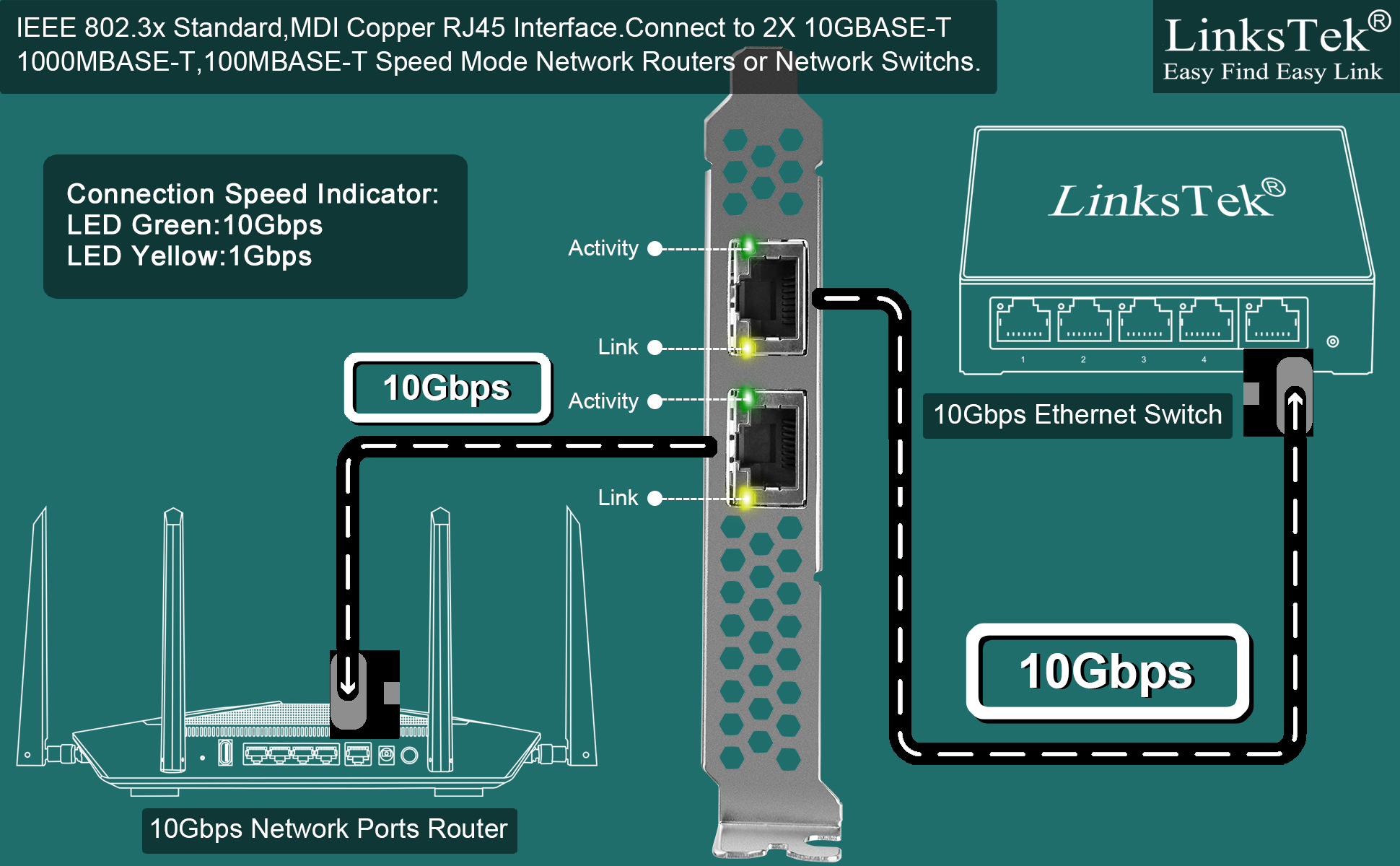

F.  1. CAT6A cable supports 10GbE speed in 100 meters. CAT6 cable supports 10GbE speed 55meters. 2. Supports IPV4 and IPV6 standar

 This LinksTek X540T2 is a PCIE 2.1 x8 to dual 10GbE RJ45 converged ethernet adapter that simplifies network migration to 10GbE for desktop PCs, network attached storage (NAS), and data centers, making it ideal for storage, virtualization, gaming, and 8K HD video streaming. It is compatible with legacy Gigabit Ethernet switches and Cat 6A cables, delivering efficient 10GbE network connectivity and reliable RJ45 performance for distances up to 100 meters when using Cat 6A cables. The adapter simplifies installation into servers and supports auto-negotiation of network speeds between 1GbE and 10GbE. It fully supports Intel Virtualization technology for connectivity, including on-chip QoS and traffic management, Flexible Port Partitioning (FPP), Virtual Machine Device Queues (VMDq), PCI-SIG SR-IOV, Intel Data Direct I/O Technology, and intelligent offloads. FPP enables servers to utilize the SR-IOV function, while the QoS functionality is applicable to both virtual and non-virtual servers. This unified networking solution consolidates traffic from multiple data center networks, such as LAN and SAN, allowing users to choose NFS, iSCSI, or FCoE to transmit both network and storage traffic at speeds of up to 10 Gb/s—providing a reliable method for connecting servers to iSCSI SANs. The open-FCoE architecture leverages FCoE initiators in Windows, Linux operating systems, and the VMware ESXi hypervisor to deliver high-performance 10GbE FCoE connectivity. Designed to fully offload the FCoE data path, the adapter delivers full-featured converged network adapter functionality.
Compatible Systems:
Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012 64bit.
Need to install driver on Windows 11, 10, 8.x, 7 32/64bit.
Linux supports IXGBE driver, need to compile driver by users.
Package: 1X X540T2 1X Low Profile Bracket 1X User Manual 1X Driver CD 1X Mount Screw.
