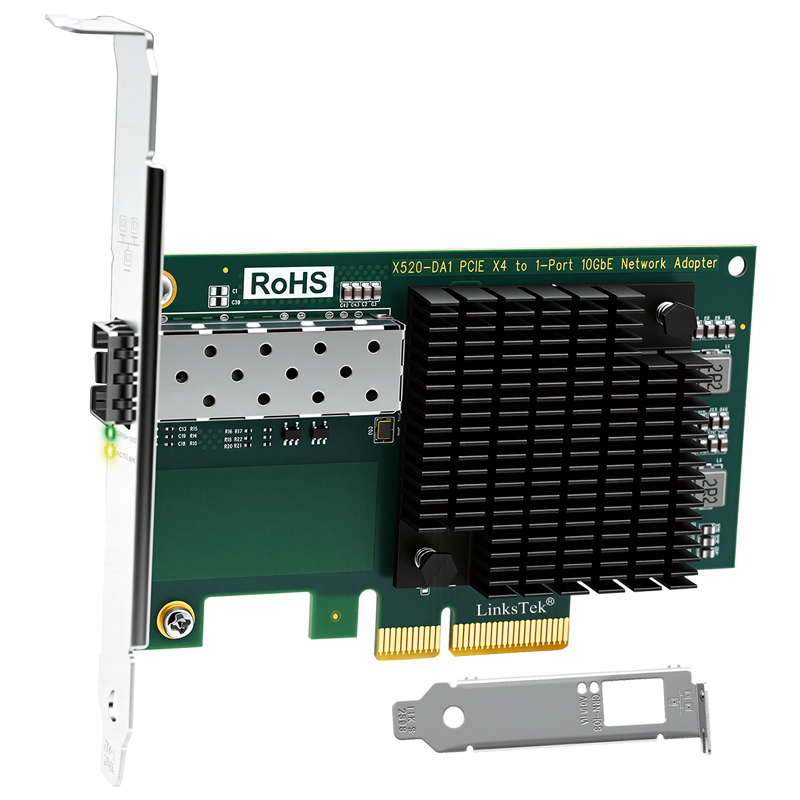

X520-DA1 PCIE 2.0 X4 Interface to 10GbE SFP+ Converged Ethernet Adpater

1. This LinksTek X520 DA1 10GbE SFP+ fiber Ethernet adapter delivers stable and unified 10Gb/s LAN and SAN connectivity for data centers, network attached storage (NAS), multi processor servers and desktop PCs. It is ideal for gaming, 4K HD video streaming, internet browsing, high speed storage applications and virtualization.
2. Major Chipset: Intel 82599 10 Gigabit Ethernet Controller; Host Interface: PCIE 2.0, PCIe x4, 20 Gbps bandwidth; Optical Transceiver Data Rate: 10GbE and 1GbE; DAC & AOC Cable Data Rate: 10GbE or 1GbE; Fiber Interface: SFP+; Storage over Ethernet: iSCSI, FCoE, NFS; Network Types: LAN, SAN.
3. Supports Intel Virtualization Technology, including on-chip QoS and traffic management, Flexible Port Partitioning (FPP), Virtual Machine Device Queues (VMDq), and PCI-SIG SR-IOV. Advanced features such as Receive Side Coalescing and Intel Ethernet Flow Director, together with PCIE 2.0 support, help achieve unprecedented 10GbE performance.
4. Compatible systems: Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012. Need to install driver on Windows 11, 10, 8.x,7 (32/64bit). Linux driver IXGBE. RHEL 8.0~8.8, 9.0~9.2, 8.9~9.0, 9.3~9.4; SLES 12 SP5, SLES 12 SP4, SLES 15 SP5, SLES 15 SP4 and previous; Ubuntu 22.04, Ubuntu 20.04; Debian 11; Free BSD 13.1~13.2, 12.0~12.3, 14.0~13.3.

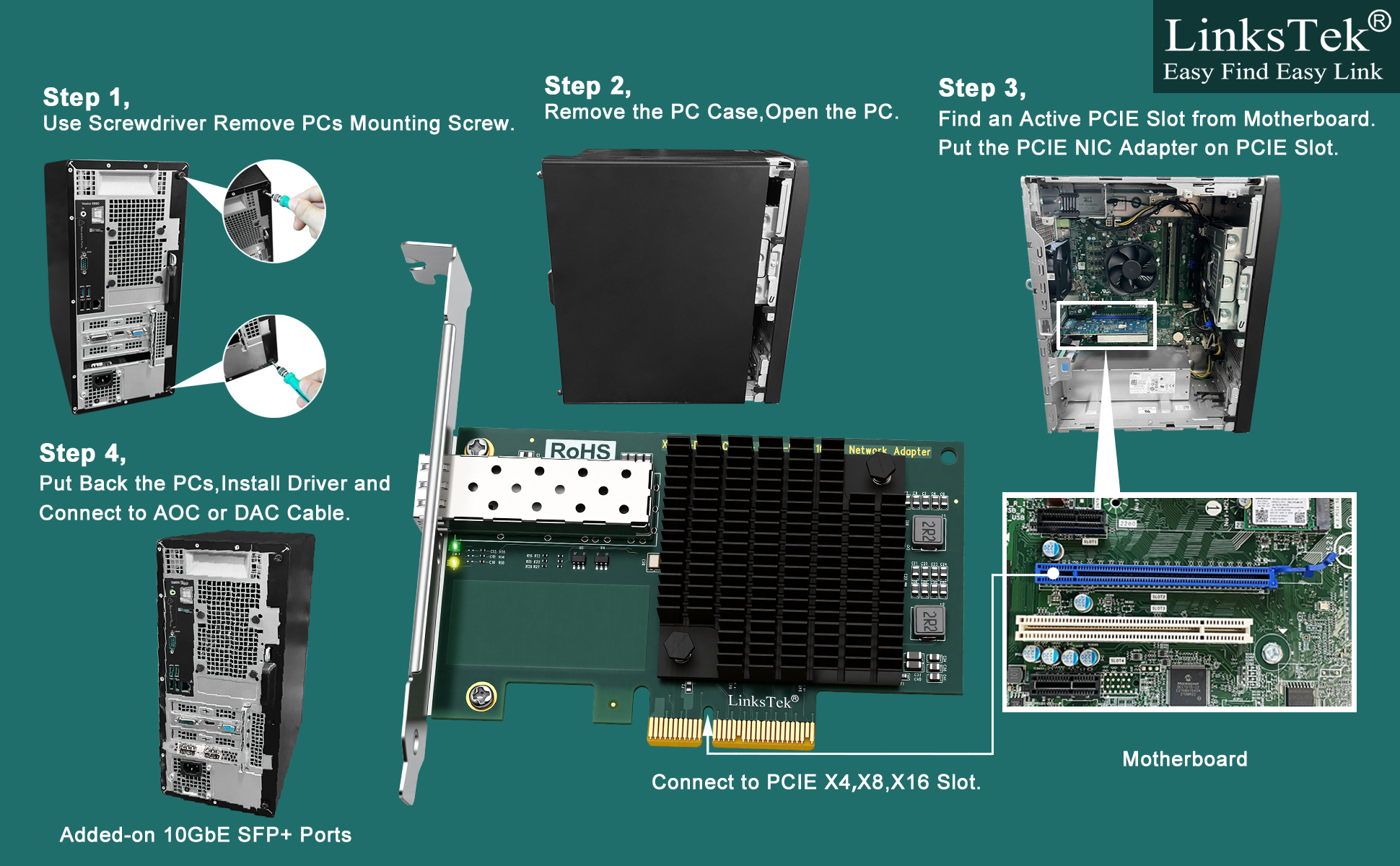

5. ATTENTION: 1. PCIE x4 interface, compatible with PCIE x4, x8 and x16 slots. 2. The X520 DA1 must be used with 10GbE SFP+ transceivers with LC cables, or use direct 10GbE DAC cables and AOC cables. 3. The NIC comes with a pre installed full height bracket; A low profile bracket is included in the package.

Technical Specifications:

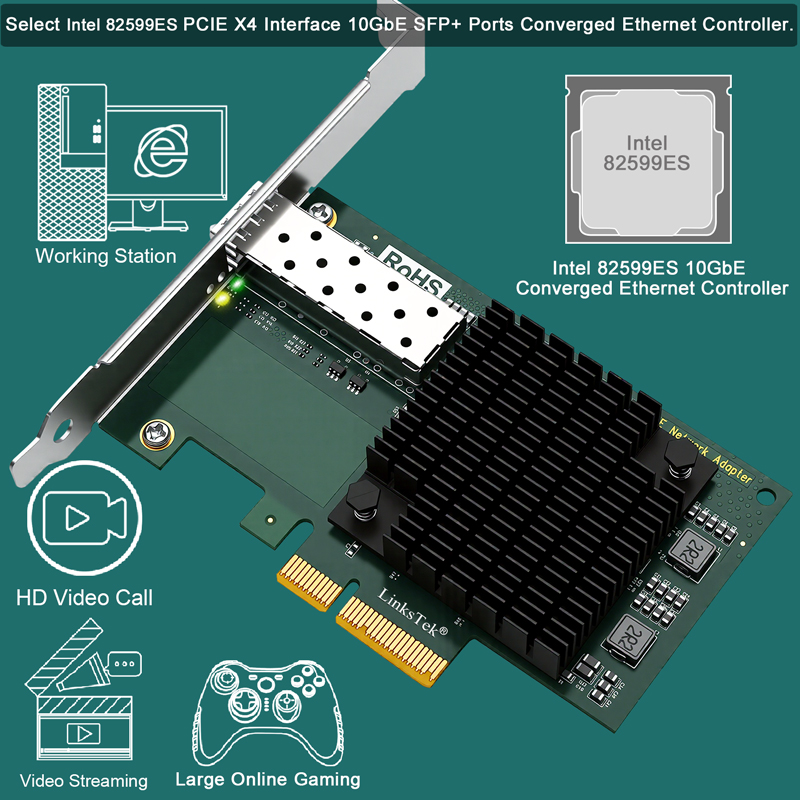

A.  1. Select the Intel82599 10Gb/s converged ethernet controller, provide 1X 10GbE ports on Desktop PCs will reduce the power consumption. 2. Will works on Intel, ARM and AMD platform.

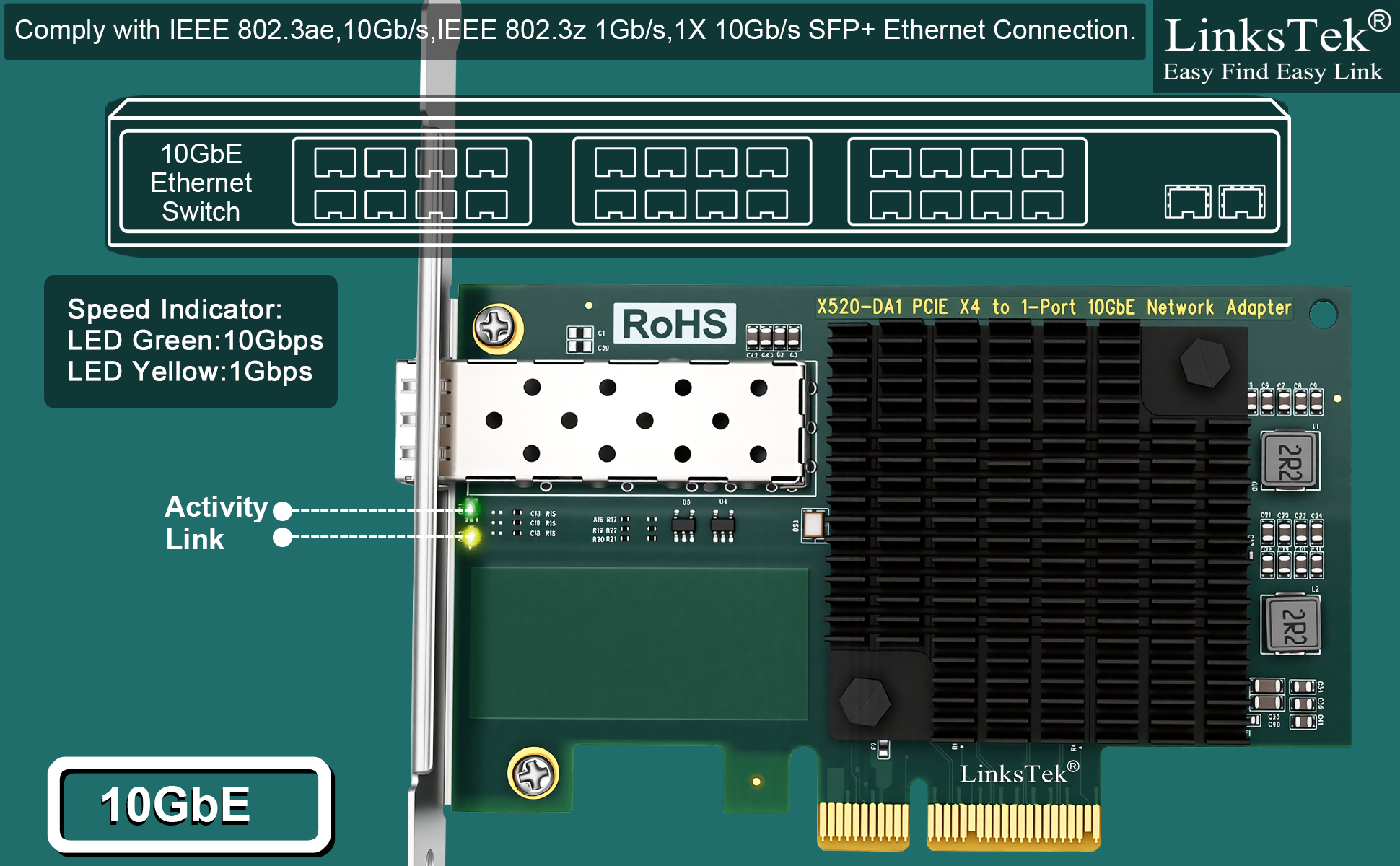

B.  1. Users will get 10Gb/s max speed on it's data center and desktop PCs. 2. Supports the 10GbE and 1GbE standard, do not support 2.5GbE and 5GbE standard.

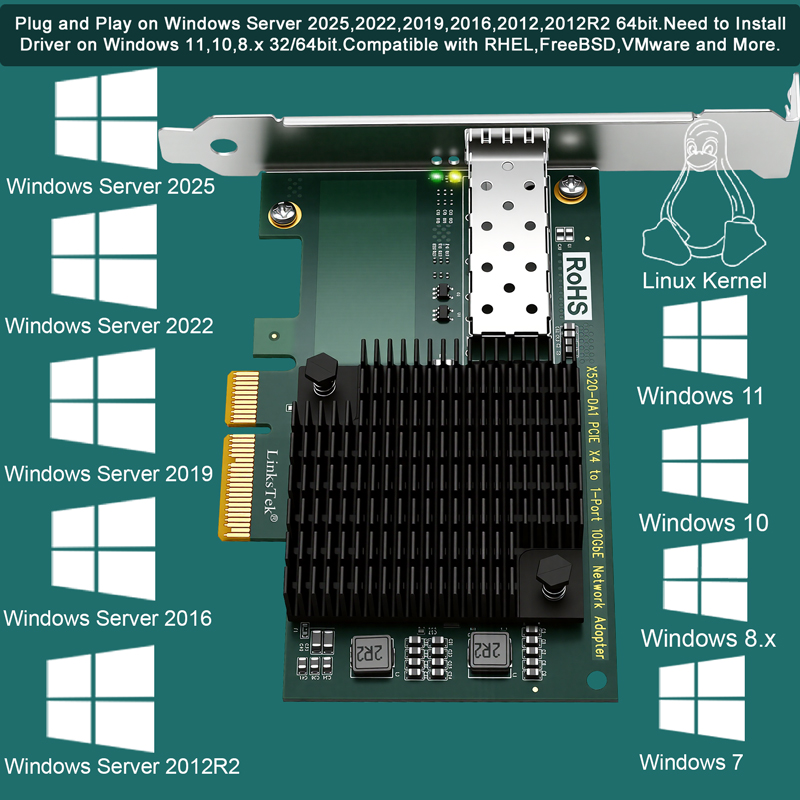

C.  1. Plug and play on Windows Server 2025, 2022, 2019, 2016, 2012R2, 2012 systems. 2. Need to install driver on Windows 11, 10, 8.x, 7 32/64bit systems. 3. Linux supports IXGBE driver, no tech-support for Linux.

D.  1. PCI Express X4 interface design, will works on PCIE X4, PCIE X8 and X16 LANE slot. 2. PCIE version 2.0 standard, will compatible with PCIE 2.x, 3.x and 4.x standard.

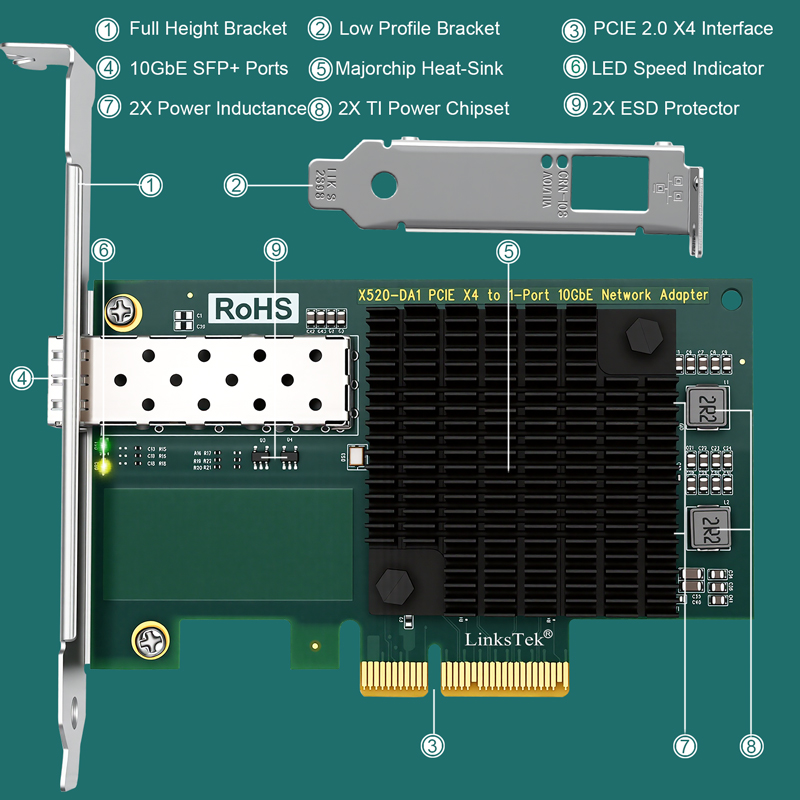

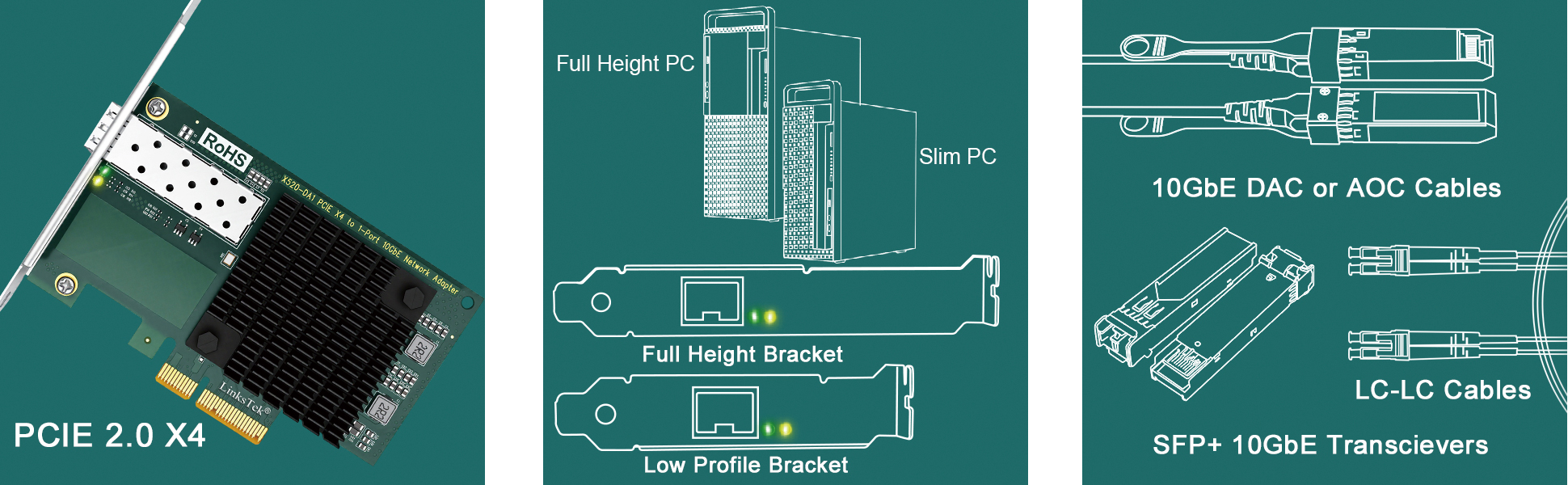

E.  1. Full height bracket mounted on the nic adapter will supports full height PCs. 2. The Low profile bracket in the package, will works on Slim PCs.

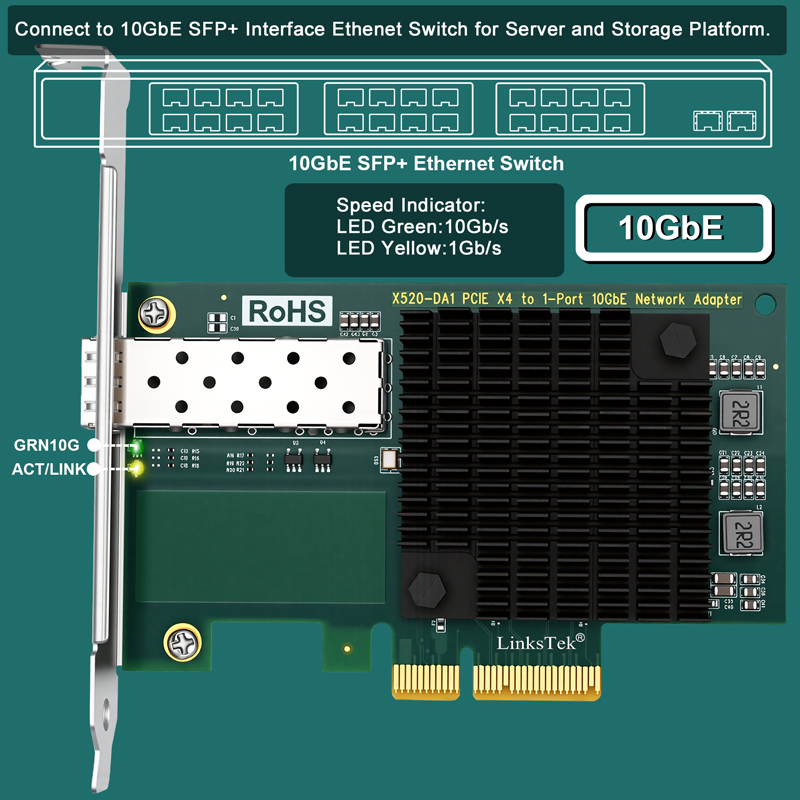

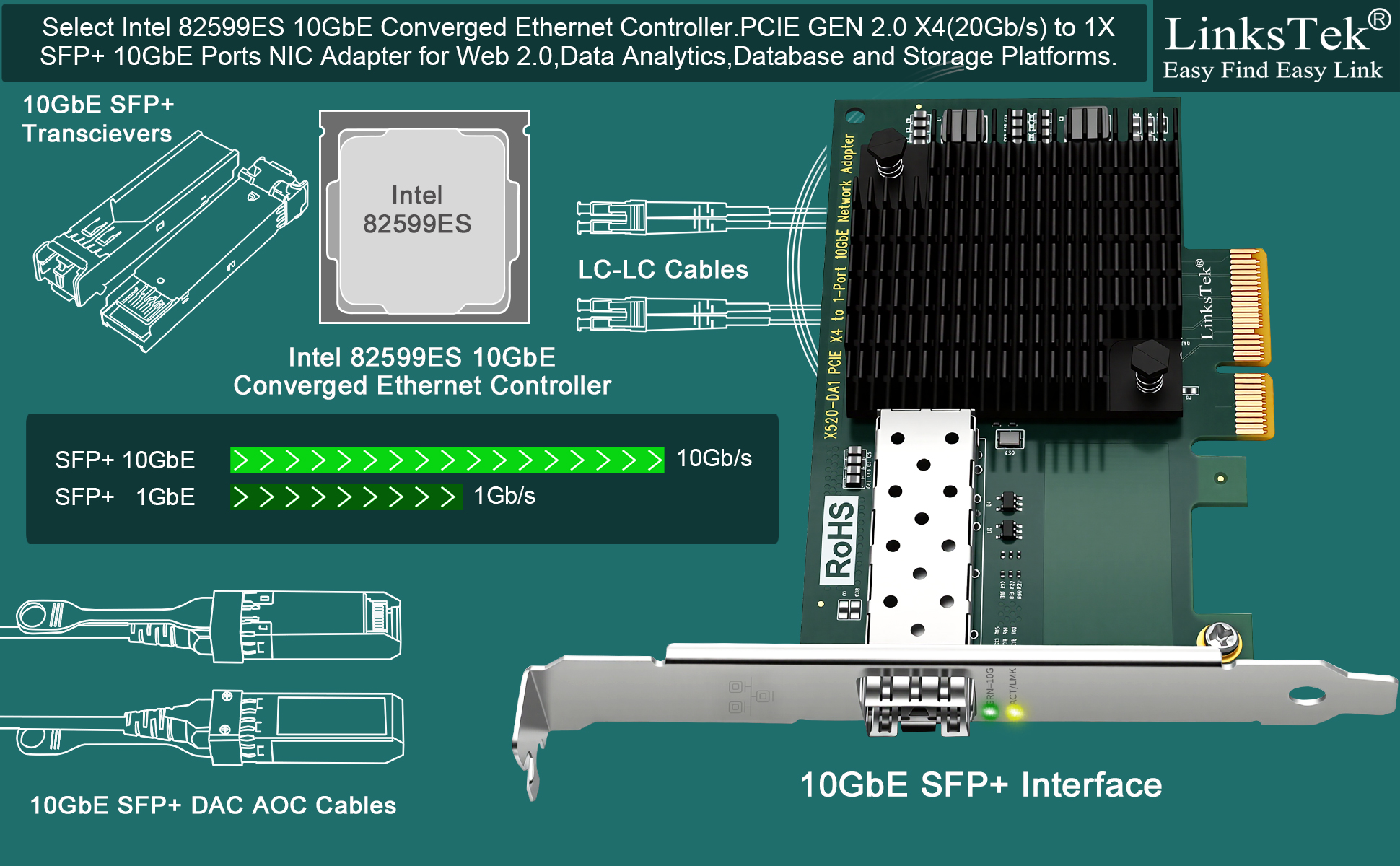

F.  1. Support 10GbE and 1GbE standard , when using SFP+ transceivers.2. Support 10GbE only when connected DAC Cables. 3.X520-DA1 MUST works with SFP+ transceivers or direct attach twin axial cable (up to 10meters).

 This LinksTek X520‑DA1 10Gbps SFP+ fiber port ethernet adapter provides reliable and unified 10GbE LAN and SAN connectivity for data centers, network attached storage, multi‑processor servers and desktop PCs. It is ideal for gaming, 4K HD video streaming, internet browsing, data storage and virtualization applications. Based on Intel’s 82599 10 Gigabit Ethernet Controller, it is compatible with most Windows and Linux systems. Utilizing a PCIE 2.0 x4 interface, it delivers a total bandwidth of 20Gbps, ensuring SFP+ port achieves 10GbE transmission and reception simultaneously. It fully supports Virtual Machine Device Queues (VMDq) and PCI‑SIG SR‑IOV. Built‑in connectivity virtualization technology enables I/O virtualization and Quality of Service (QoS) features. I/O virtualization enhances network performance with Flexible Port Partitioning (FPP) and multiple Rx/Tx queues. FPP allows servers to leverage the SR‑IOV function, while QoS is available for both virtualized and non‑virtualized servers. This unified networking solution consolidates LAN and SAN traffic across data center networks onto a single high‑efficiency fiber network. Users can utilize NFS, iSCSI or FCoE protocols to transport both network and storage traffic at speeds up to 10 Gbps, offering a reliable and efficient way to connect servers to iSCSI SANs. The open‑FCoE architecture, supported by FCoE initiators on Windows, Linux and VMware ESXi hypervisors, delivers high‑performance 10 GbE FCoE connectivity.

Compatible systems:
Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012.
Need to install driver on Windows 11, 10, 8.x, 7 32/64bit.
Linux support IXGBE driver. RHEL 8.0~8.8, 9.0~9.2, 8.9~9.0, 9.3~9.4.
SLES 12 SP5, SLES 12 SP4, SLES 15 SP5, SLES 15 SP4 and previous.
Ubuntu 22.04, Ubuntu 20.04; Debian 11; Free BSD 13.1~13.2, 12.0~12.3, 14.0~13.3.

Package: 1X X520-DA1 1X Low Profile Bracket 1X User Manual 1X Driver CD 1X Mount Screw
