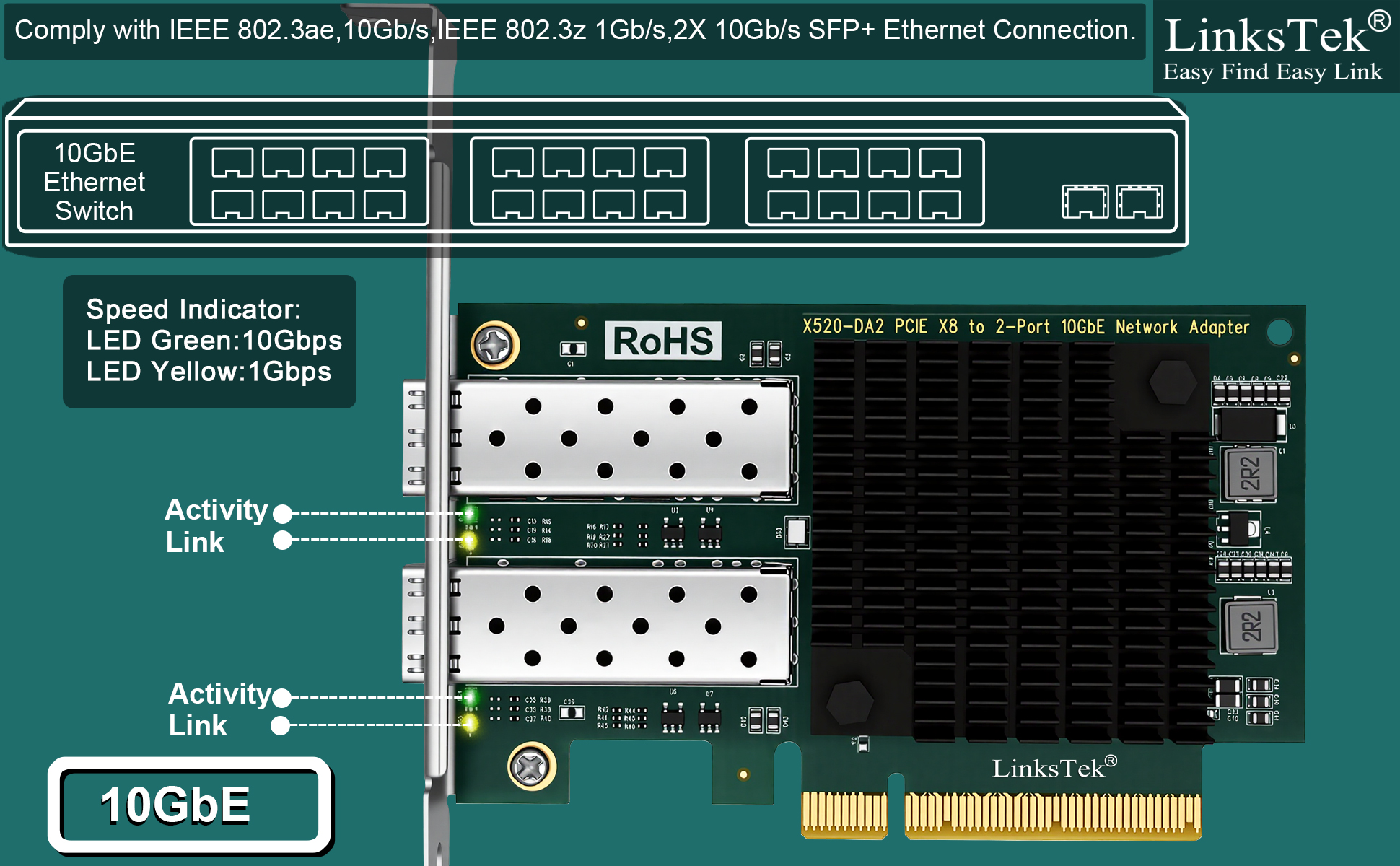

X520-DA2 PCIE x8 to 2-Ports 10GbE SFP+ Converged Ethernet Adpater

1. This LinksTek X520 DA2 dual 10GbE SFP+ ports converged ethernet adapter provides stable and unified 10Gbps LAN and SAN connectivity for data centers, network attached storage (NAS), multi processor servers, and desktop PCs. It is ideal for gaming, 4K ultra HD video streaming, internet surfing, storage, and virtualization applications.

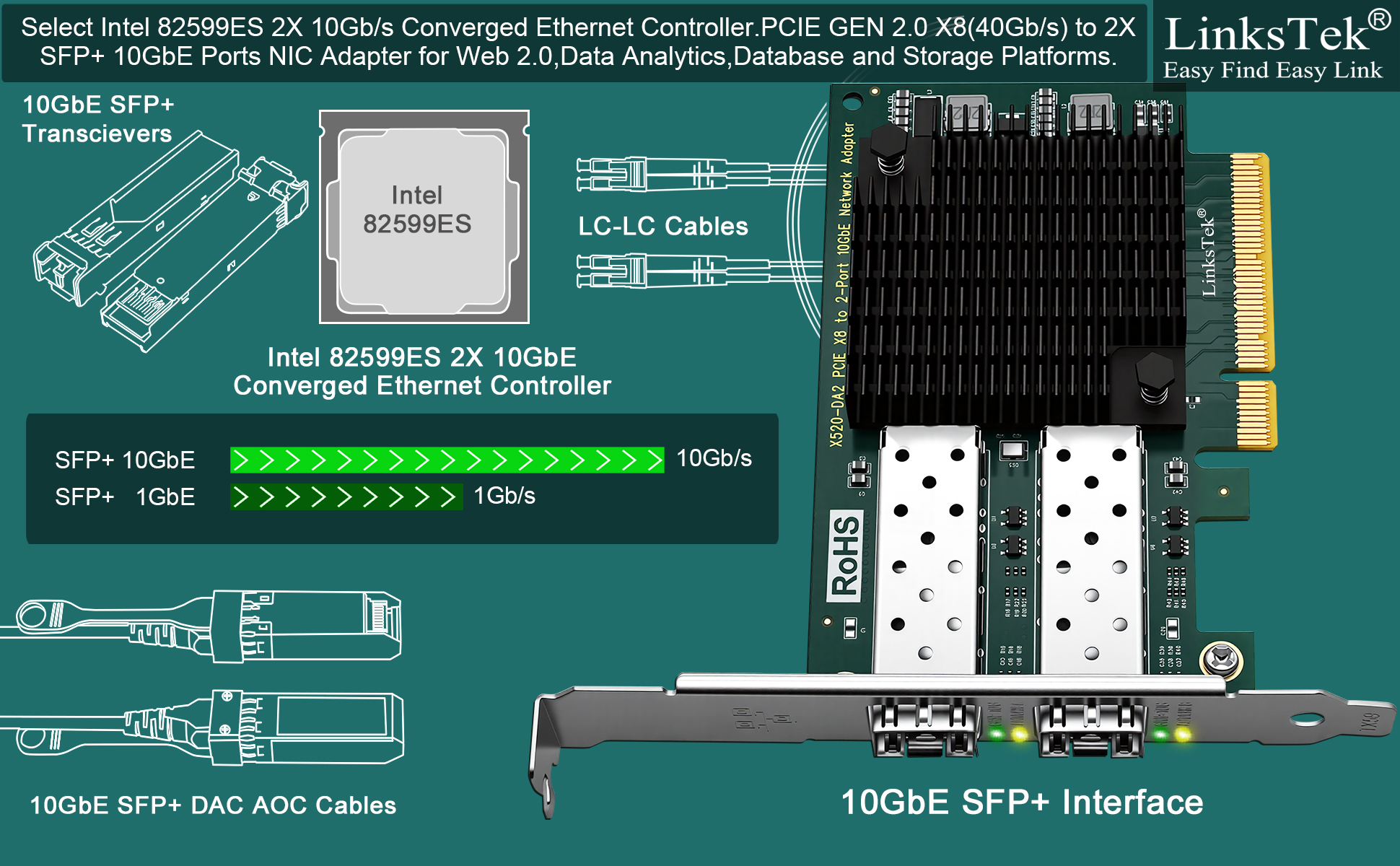

2. Major Chipset: Intel 82599ES 10 Gigabit Ethernet Controller; Host Interface: PCIE 2.0 standard, PCIE x8 Interface, 40Gbps Bandwidth; Fiber Type: SFP+ Interface; Optical Transceiver Attached Data Rate: 10GbE and 1GbE; DAC and AOC Cable Data Rate: 10GbE or 1GbE; Network Interfaces: SFI, KR, XAUI, KX, KX4, BX, CX4; Storage over Ethernet: iSCSI, NFS; Network Type: LAN, SAN.
3. Supports Intel Virtualization Technology, including on-chip QoS and traffic management, Flexible Port Partitioning (FPP), Virtual Machine Device Queues (VMDq), and PCI-SIG SR-IOV. Advanced features such as Receive Side Coalescing and Intel Ethernet Flow Director, together with PCIE 2.0 support, help achieve unprecedented 10GbE performance.
4. Compatible systems: Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012. Need to install driver on Windows 11, 10, 8.x,7 (32/64bit). Linux driver IXGBE. RHEL 8.0~8.8, 9.0~9.2, 8.9~9.0, 9.3~9.4; SLES 12 SP5, SLES 12 SP4, SLES 15 SP5, SLES 15 SP4 and previous; Ubuntu 22.04, Ubuntu 20.04; Debian 11; Free BSD 13.1~13.2, 12.0~12.3, 14.0~13.3.

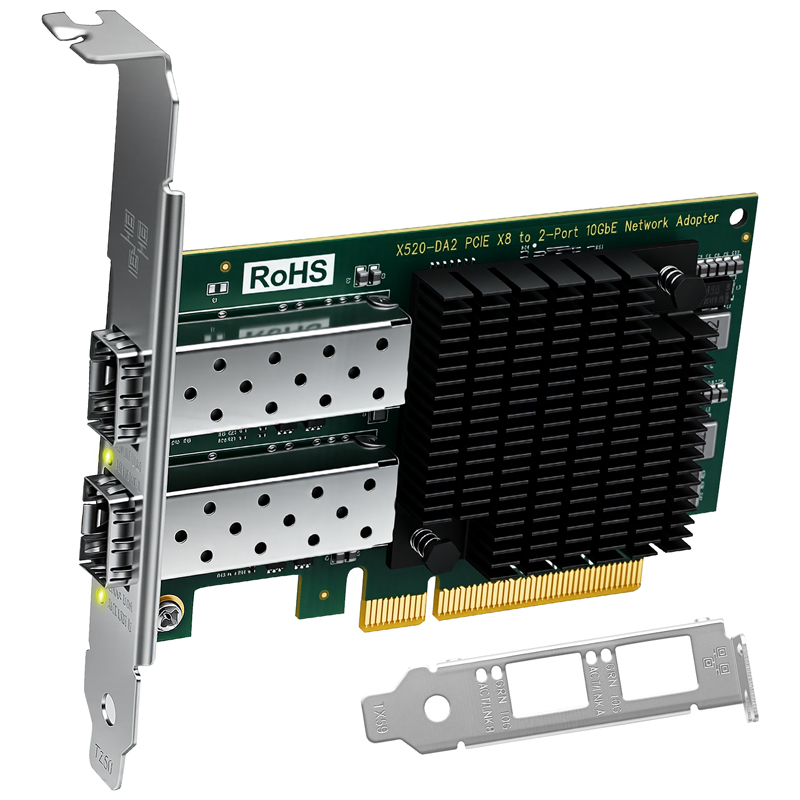

5. ATTENTION: 1. This PCIE x8 interface card is compatible with PCIE x8 or x16 slots on the motherboard. 2. The X520 DA2 must be used with 10GbE SFP+ transceivers with LC cables or 10GbE direct AOC DAC cables. 3. The NIC comes with a pre installed full height bracket; A low profile bracket is included in the package.

Technical Specifications:

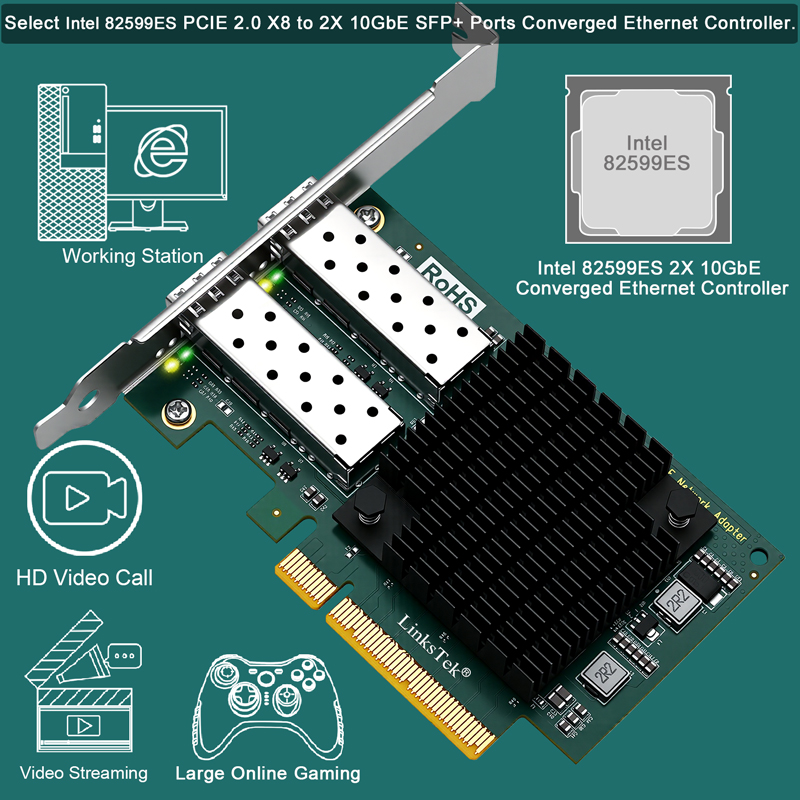

A.  1. Select the Intel 82599ES 2X 10Gb/s converged ethernet controller, provide 2X 10GbE ports on Desktop PCs will reduce the power consumption. 2. Will works on Intel, ARM and AMD platform.

B.  1. Users will get 10Gbps max speed on it's data center and desktop PCs. 2. Supports the 10GbE and 1GbE standard, do not support 2.5GbE and 5GbE standard.

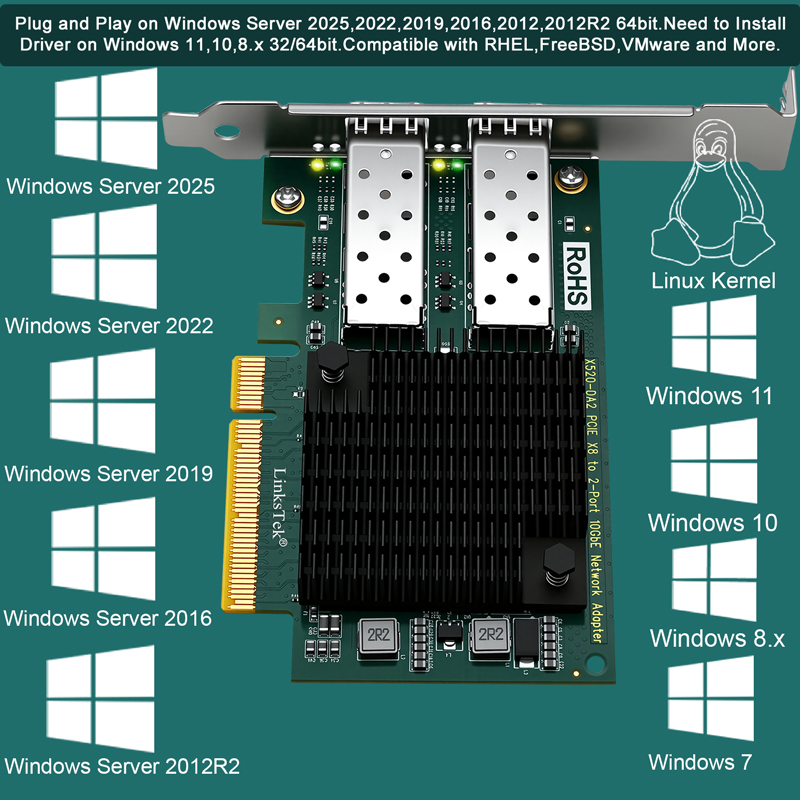

C.  1. Plug and play on Windows Server 2025, 2022, 2019, 2016, 2012R2, 2012 systems. 2. Need to install driver on Windows 11, 10, 8.x, 7 32/64bit systems. 3. Linux supports IXGBE driver, no tech-support for Linux.

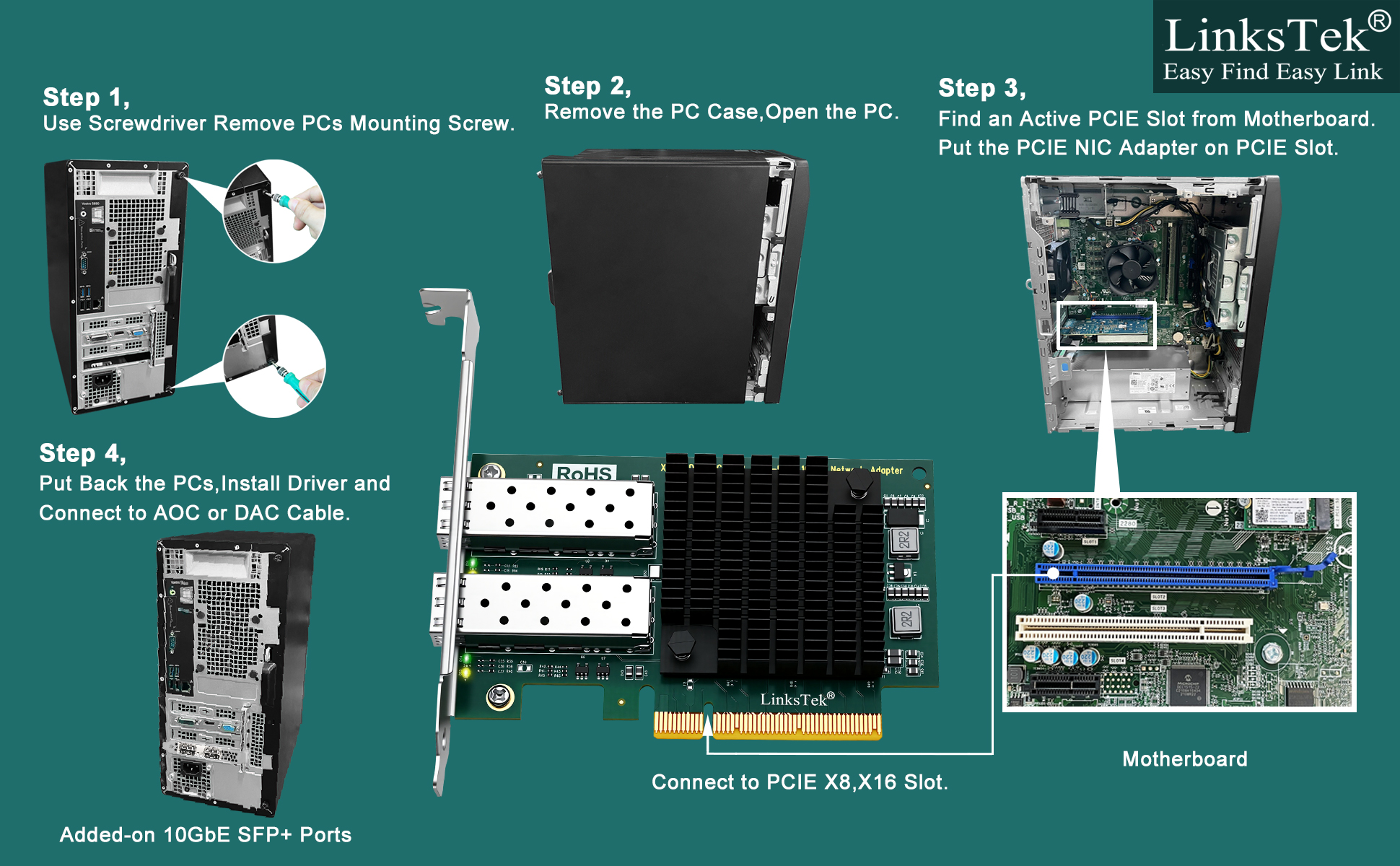

D.  1. PCI Express X8 interface design, will works on PCIE X8 and X16 LANE slot. 2. PCIE version 2.0 standard, will compatible with PCIE 2.x, 3.x and 4.x standard.

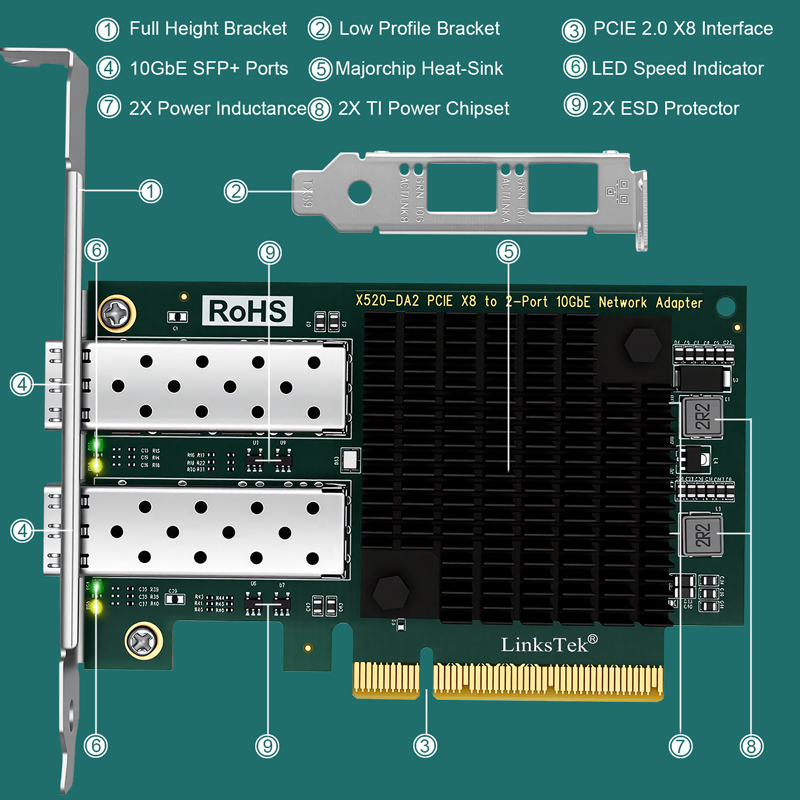

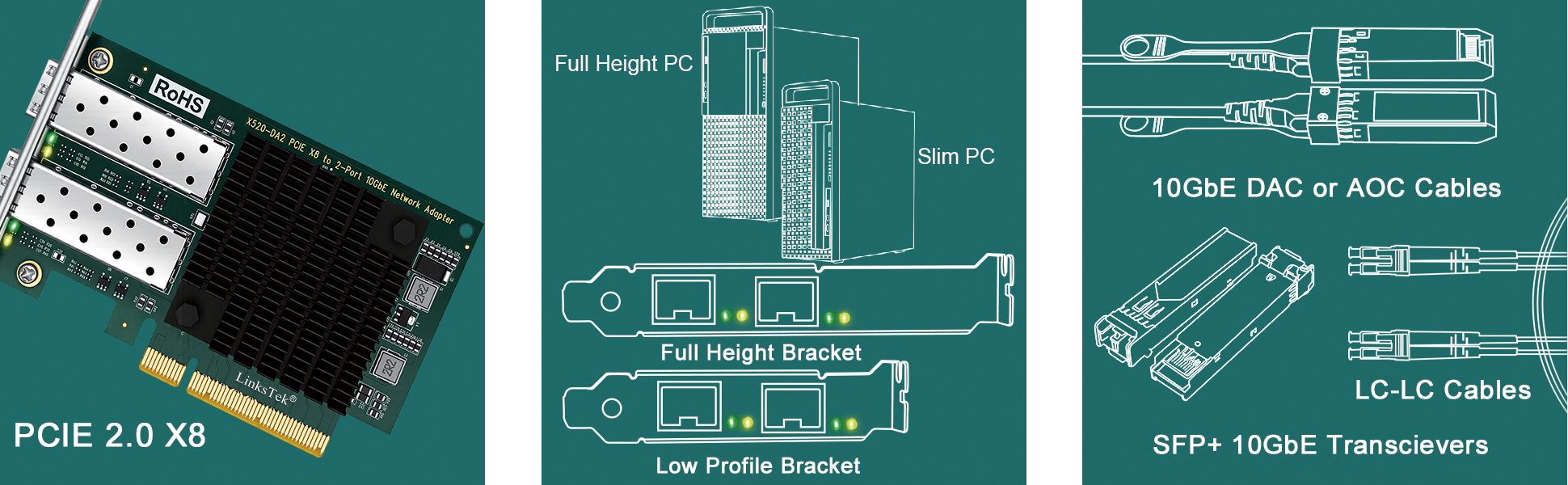

E.  1. Full height bracket mounted on the nic adapter will supports full height PCs. 2. The Low profile bracket in the package, will works on Slim PCs.

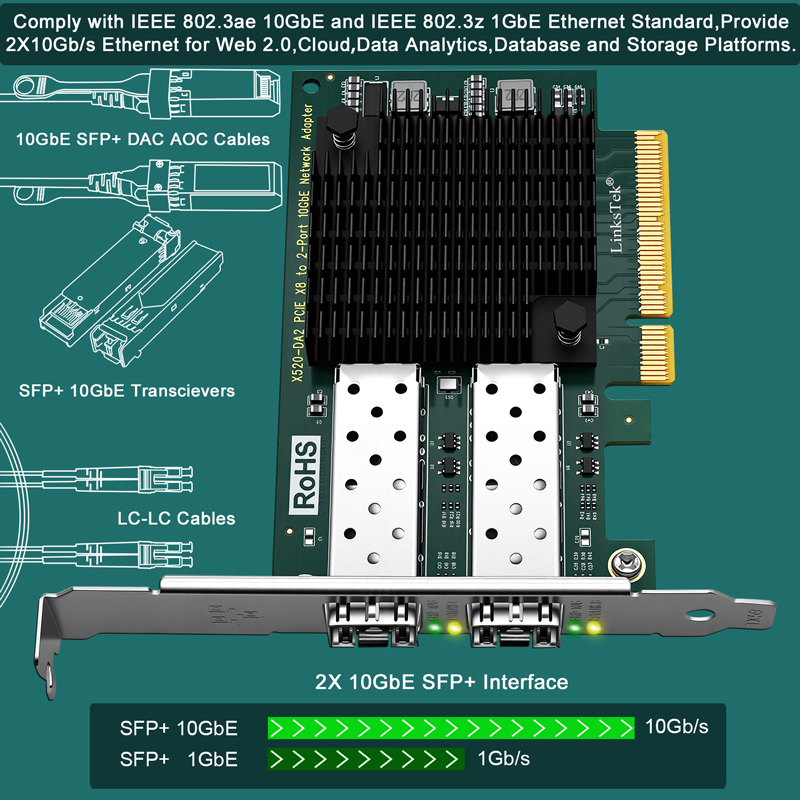

F.  1. Support 10GbE and 1GbE standard , when using SFP+ transceivers. 2. Support 10GbE only when connected DAC Cables. 3.X520-DA2 MUST works with SFP+ transceivers or direct attach twin axial cable (up to 10meters).

 This LinksTek X520‑DA2 dual 10GbE SFP+ ports converged Ethernet adapter provides reliable and unified 10GbE LAN and SAN connectivity for data centers, network attached storage (NAS), multi‑processor servers, and desktop PCs. It is ideal for gaming, storage, and virtualization applications. Based on Intel’s 82599ES 10 Gigabit Ethernet Controller, this adapter is compatible with most Windows and Linux systems. It utilizes the PCIE 2.0 protocol with a PCIE x8 interface, delivering a total bandwidth of 40Gbps to ensure that each SFP+ port achieves 10GbE transmission and reception simultaneously. The adapter fully supports Virtual Machine Device Queues (VMDq) and PCI‑Sig SR‑IOV. Its built‑in virtualization technology enables I/O virtualization and Quality of Service (QoS) features. I/O virtualization enhances network performance with Flexible Port Partitioning (FPP) and multiple Rx/Tx queues, allowing servers to fully utilize the SR‑IOV function. QoS functionality is supported in both virtualized and non‑virtualized server environments. This unified networking solution consolidates LAN and SAN traffic onto a single high‑efficiency network fabric. Users can deploy NFS, iSCSI, or FCoE to transport both network and storage traffic at speeds up to 10 Gb/s, providing a stable and efficient way to connect servers to iSCSI SANs. The Open‑FCoE architecture supports FCoE initiators on Windows, Linux, and VMware ESXi hypervisors, delivering high‑performance 10 GbE FCoE connectivity.

Compatible systems:
Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012.
Need to install driver on Windows 11, 10, 8.x, 7 32/64bit.
Linux driver IXGBE. RHEL 8.0~8.8, 9.0~9.2, 8.9~9.0, 9.3~9.4;
SLES 12 SP5, SLES 12 SP4,SLES 15 SP5, SLES 15 SP4 and previous;
Ubuntu 22.04, Ubuntu 20.04; Debian 11; Free BSD 13.1~13.2, 12.0~12.3, 14.0~13.3.

Package: 1X X520-DA2 1X Low Profile Bracket 1X User Manual 1X Driver CD 1X Mount Screw
